AC Voltage Detector AC50A with Color Screen

Color screen voltage detector with adjustable sensitivity

Please enable JavaScript in your browser to complete this form.
Name And Email
Country And Phone
Our business team will respond to you within 24 hours.

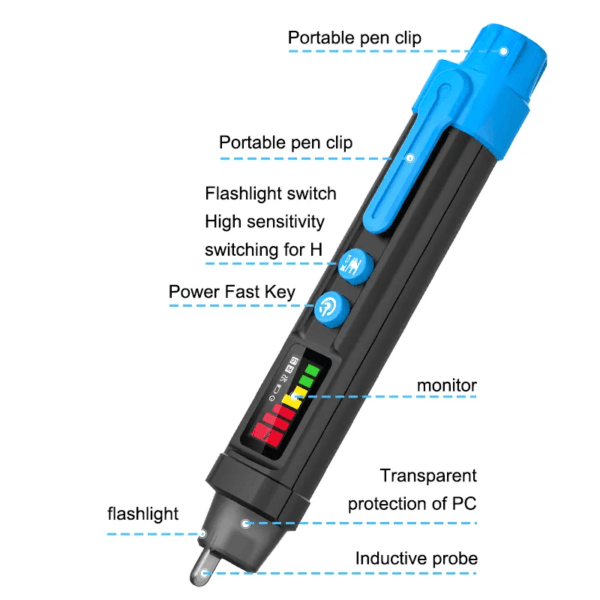

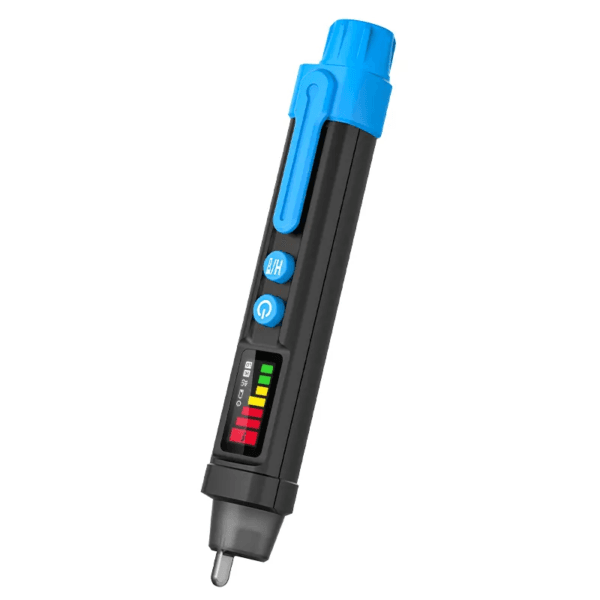

AC50A, it is a multifunctional dual range AC voltage detector suitable for electrical professionals and DIY enthusiasts. The built-in LED flashlight provides a clear view even in dark environments. The AC50A is equipped with a color screen that clearly displays key information. It provides three alarm modes: screen display, LED indicator and sound warning. Its adjustable sensitivity and frequency detection function make it perform well in various electrical tasks. The AC50A also has the function of neutral and live wire identification, and includes breakpoint detection to help you easily locate the problem. Dual voltage range (12~1000V / 48~1000V) and rugged housing. It can withstand a fall of up to 2 meters, which is both rugged and reliable. The AC50A will automatically shut down after 5 minutes of no operation to save battery use. It also complies with safety standards such as EN61010-1, EN61010-2-033 and CAT III 1000V.

Functions

Screen displayColorful LCD Display
AC voltage range12~1000V/48~1000V
Frequency50 Hz /60Hz
Type of alarmDisplay and sound and light alarm
FlashlightLED light
Automatic shut-downAbout 5 minutes
Live wire identificationAccording to the signal indicating light, display analog bar, sound
SensitivityTwo alternatives
Usage temperature0~40°C
Altitude<2000m
Security level/phaseCE CAT.Ⅲ 1000V / CAT.IV 600V
Power Supply2*1.5V AAA battery
Product size160*23*27(mm)
Product weightAbout 40g (excluding battery)
Standard AccessoriesVoltage Detector-User Manual-Batteries-Color Box
