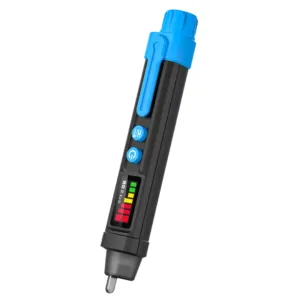

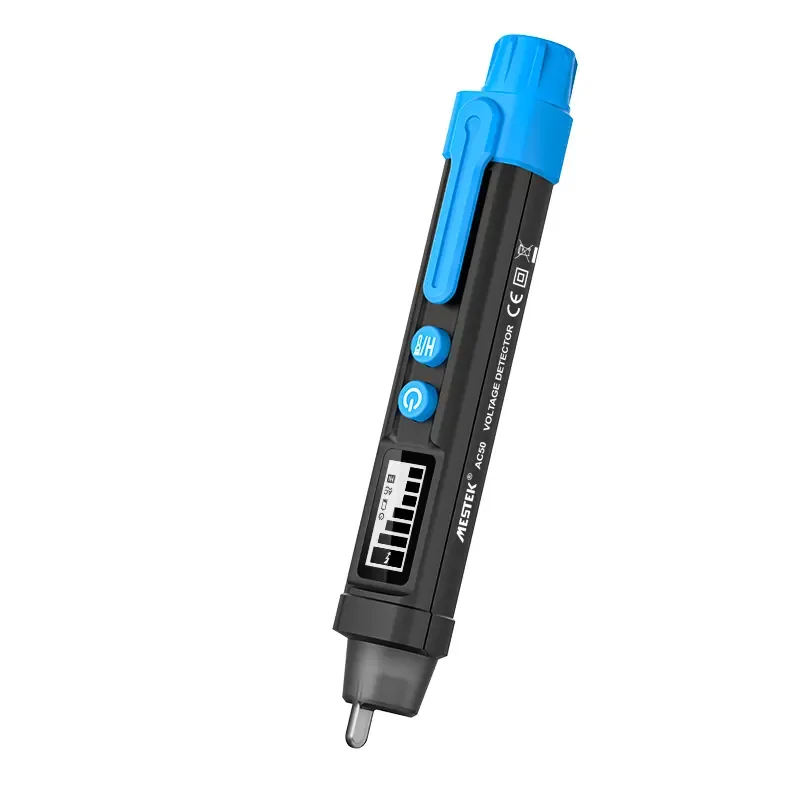

AC Voltage Detector with LCD Display AC50

Voltage detector for line identification and frequency detection

Please enable JavaScript in your browser to complete this form.
Name And Email
Country And Phone
Our business team will respond to you within 24 hours.

The AC50 AC Voltage Detector is a versatile and high-performance tool. It is equipped with a white LED flashlight that can be clearly seen in dark or low-light environments. The AC50 has features such as adjustable sensitivity, frequency detection and breakpoint detection. In the dual voltage range (12~1000V / 48~1000V), three warning methods are provided: screen display, LED indicator and sound alarm. This enables it to be used flexibly in different environments. The AC50 is designed to be rugged and can withstand a drop of up to 2 meters. It also has a line identification function to ensure safe operation. It also meets the CE CAT Ⅲ 1000V/CE CAT III 600V safety standards. The device will automatically shut down after 5 minutes of inactivity to save battery and weighs only 45g.

Functions

Screen displayBlack and white screen
AC voltage range12~1000V/48~1000V
Frequency50 Hz /60Hz
Type of alarmDisplay and sound and light alarm
FlashlightLED light
Automatic shut-downAbout 5 minutes
Live wire identificationAccording to the signal indicating light, display analog bar, sound
SensitivityTwo alternatives
Usage temperature0~40°C
Altitude<2000m
Security level/phaseCE CAT.Ⅲ 1000V / CAT.IV 600V
Power Supply2*1.5V AAA battery
Product size160*23*27(mm)
Product weightAbout 40g (excluding battery)
Standard AccessoriesVoltage Detector-User Manual-Batteries-Color Box
