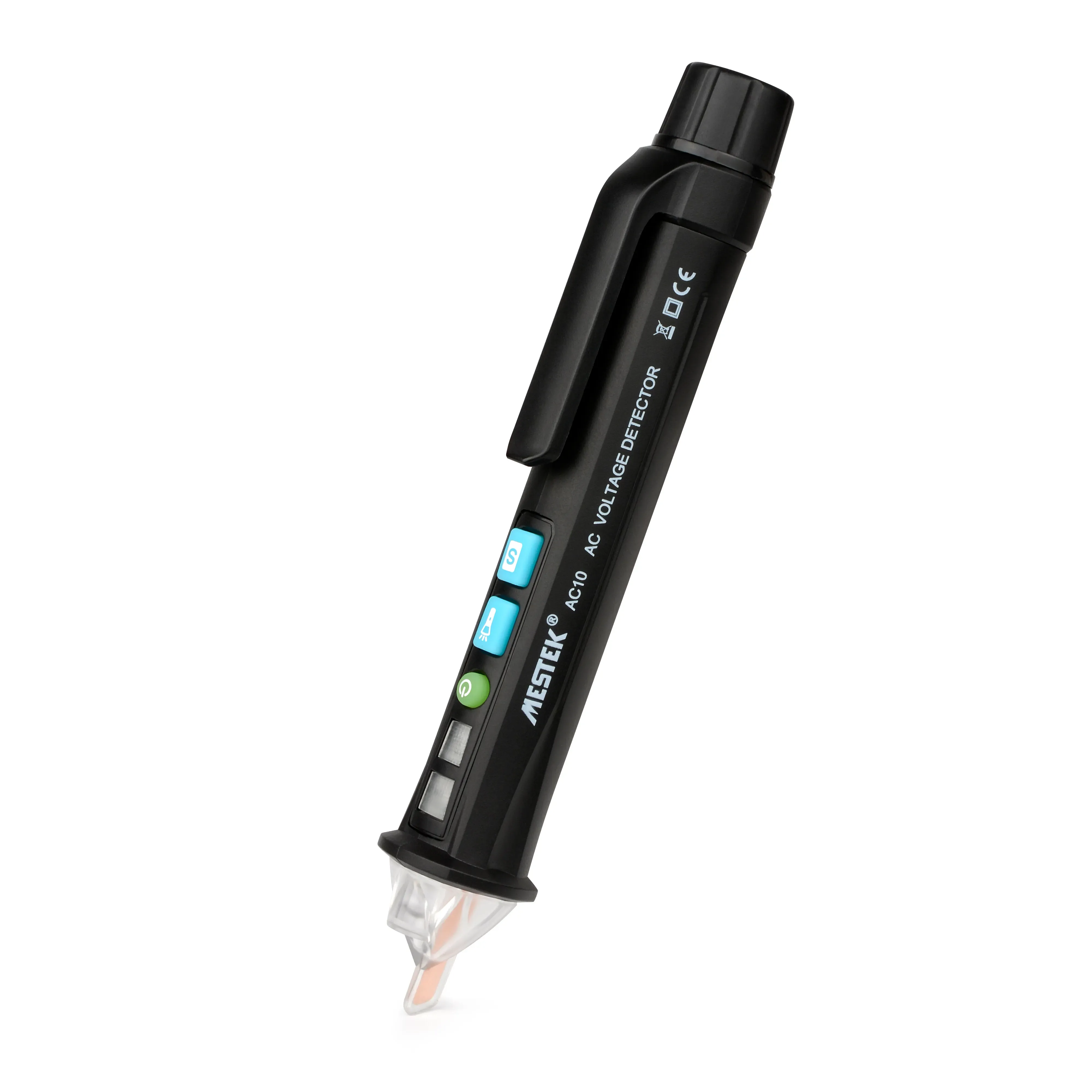

Dual Range Voltage Detection Den AC10
Dual range voltage detector 12~1000V/48~1000V
The AC10 dual voltage range voltage detector pen is designed for professional and DIY electrical work. It has a (12~1000V / 48~1000V) and a built-in LED flashlight. It is suitable for voltage detection in low-light environments. The AC10 voltage detector also has a live wire identification function. The green indicator light indicates the line is correct, and the red indicator light indicates the line is incorrect. It has a sturdy housing that can withstand a 2-meter drop. The device automatically shuts down after 5 minutes of inactivity to save battery power.
Functions
| AC Voltage | 12~1000V/48~1000V |
| Alarm Mode | Sound and Red/Green Light Instruction |
| Torch | White LED Flashlight |
| Neutral and Hot Line Distinguish | Judging by signal strength, the one with a strong signal is the hotline |
| Sensitivity Indication Method | The tester uses different frequency alarm sound and diferent LED Lamp to indicate low,medium, or high sensitivity |
| Probe Shape | Prolate |
| Auto shutdown | Auto shutdown if there is no operation or testingsignal within 5 minutes |
| Low Battery Indication | When the battery voltage for the tester is lower than 2.6V, the power indicator flashesfor 3 items, while the buzzer makes a sound |
| Safety Level | EN61010-1,EN61010-2-033 CAT Ⅲ 1000V |
| Batteries | 2*1.5V AAA Batteries |
| Product Size | 156*20*20 (mm) |
| Weight | About 45g |
| Standard Accessories | Voltage Detector-User Manual-Batteries-Color Box |
