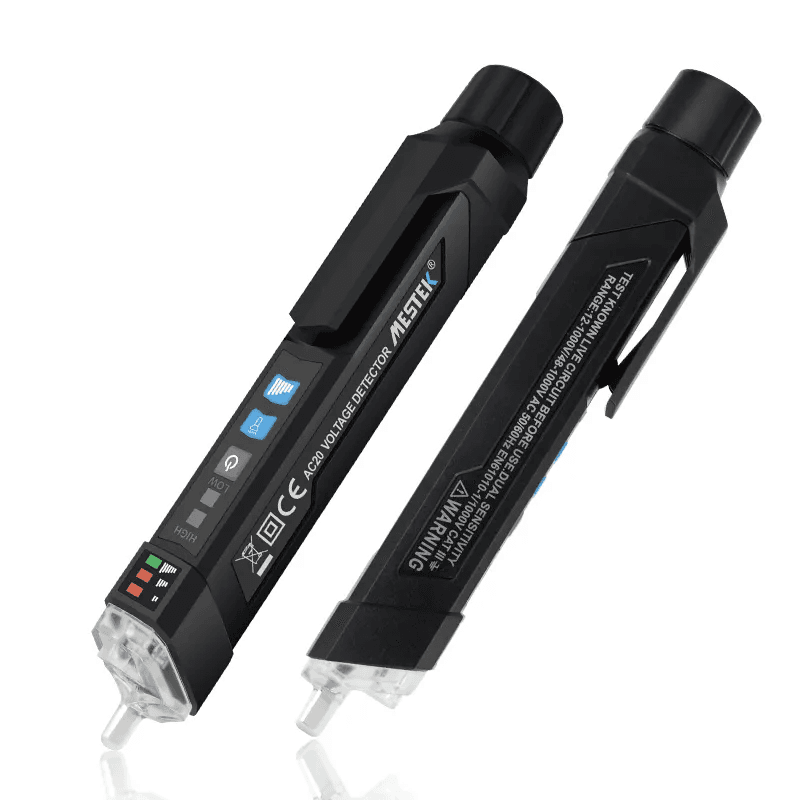

The AC20 voltage detector is designed for both professional and DIY electrical work. It features a white LED flashlight on the top for easy use in low-light environments. With dual voltage ranges (12~1000V / 48~1000V), it is suitable for detecting both low-voltage and high-voltage lines. The detector features live wire identification and provides accurate detection information through LED indicators and an audible alarm. Its rugged housing and shock-resistant design can withstand a 2-meter drop. The AC20 complies with EN61010-1, EN61010-2-033 and CAT III 1000V safety standards. It also features a 45g lightweight design and automatically shuts off after 5 minutes of inactivity.
| AC Voltage | 12~1000V/48~1000V |
| Alarm Mode | Sound and Red/Green Light Instruction |
| Torch | White LED Flashlight |
| Neutral and Hot Line Distinguish | Judging by signal strength, the one with a strong signal is the hotline |
| Sensitivity Indication Method | The tester uses different frequency alarm sound and diferent LED Lamp to indicate low,medium, or high sensitivity |
| Probe Shape | Prolate |
| Auto shutdown | Auto shutdown if there is no operation or testingsignal within 5 minutes |
| Low Battery Indication | When the battery voltage for the tester is lower than 2.6V, the power indicator flashesfor 3 items, while the buzzer makes a sound |
| Safety Level | EN61010-1,EN61010-2-033 CAT Ⅲ 1000V |
| Batteries | 2*1.5V AAA Batteries |
| Product Size | 156*20*20 (mm) |
| Weight | About 45g |
| Standard Accessories | Voltage Detector-User Manual-Batteries-Color Box |
