Do you consider yourself to be a storm chaser, a weather fan, a drone pilot, or someone working in geotech engineering? If so, knowing how to measure wind speed accurately is super important. That’s where the anemometers comes in; it has been a small but mighty tool that has helped us make wind-related decisions for ages.
An anemometer, inspired by the Greek anemos, meaning wind, gauges wind speed (and sometimes volume) for meteorological observation. From predicting storms to the optimization of wind turbines or to safeguarding construction site operations, these tools are crucial for a broad variety of sectors. However, not all anemometers are created equal.
In this post, we’ll dissect the four primary anemometer types, cup, vane, hot-wire, and ultrasonic, so you can wrap your head around how each works and which type best fits your unique situation.
Four Main Types of Anemometers Explained: How to Determine the Best Anemometer For You
Selecting the right anemometer can seem overwhelming if you don’t know how they work and what each is best for.
As soon as you dip your toes into the world of wind-speed measuring devices, you will realize that it is not a case of one size fits all.
Whether trying to estimate wind speeds on a mountain ridge or measuring airflow in an HVAC duct, you want the right anemometer to get an accurate reading.
Among the numerous proven designs commercially available, four types of anemometers have been extensively employed in practice. These include the cup anemometer, the vane anemometer, the hot-wire anemometer, and the ultrasonic anemometer, which are known for their practicality, reliability, and wide range of applications.

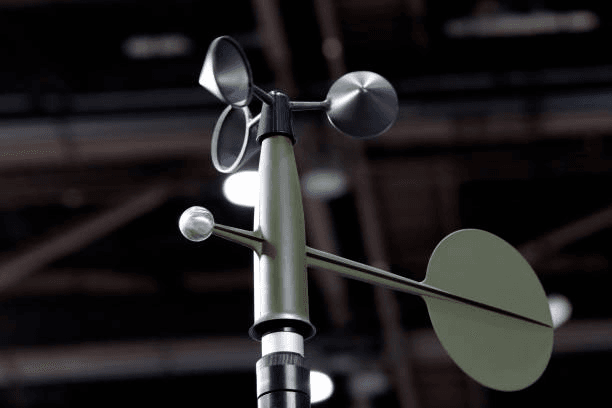

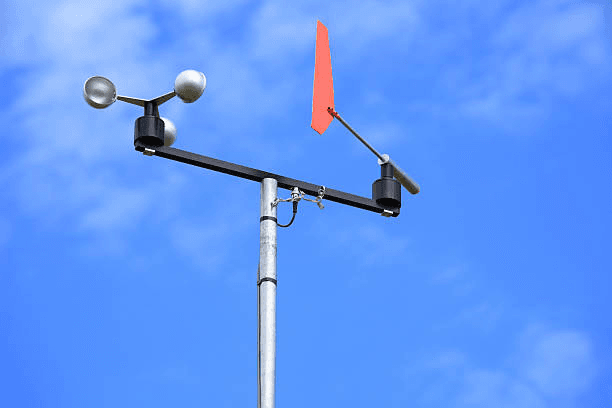

1. Cup Anemometers – Easy to Use, Robust and Well-Proven
If you have ever noticed a weather station towered over rooftops or observed benignly in an open field, you will probably have seen a cup anemometer. There’s a reason this classic design has changed little over the years.
How It Works
The instrument comprises three or four concave cups mounted at right angles on their respective arms, which are fixed symmetrically onto a central vertical rod. Wind causes the cups to revolve around the shaft. The wind speeds up as they rotate faster. This rotational velocity can be converted into a wind speed measurement via magnetic or optical sensors.
Typical Uses
- Meteorological stations
- Wind turbine performance monitoring
- Outdoor environmental studies
Best For
This anemometer is perfect for professional and industrial use and those seeking long-term wind data. It is mechanical, so it’s best used in permanent installations and is not as compact or portable.
Why Choose a Cup Anemometer?
It’s reliable, easy to read, and made to withstand brutal conditions. If you want durability and precision, this is your go-to solution for wind farms, research complexes, or long-range climate tracking.
2. Vane Anemometers – the Universal Device for Indoor and Outdoor Measurement Applications
The vane anemometer is an extremely versatile tool and is one of the most commonly used types of anemometers today. It resembles a little wind turbine or propeller, spinning as air blows through it. Their design supports outdoor and indoor applications, making them very useful for accurate field measurements requiring easy operation.
How It Works
As air hits the device, the impeller (or fan) rotates. The rotational speed of the impeller is proportional to the speed of air hitting the device. Electronic sensors in the device measure the wind’s speed or the air flow rate and translate it into digital readings.
A prime example is the AM620 model made by Mestek Instruments, which is equipped with modern features such as measuring air volume in CMM/CFM, temperature, and other measures. It has a high-sensitivity sensor coupled with an LCD that is easy to read and use for recording measurements.
In addition, field instruments are provided with data hold, highest and lowest readings, and unit conversion functions to make measurements versatile. Vane anemometers with multi-functional features provide convenience, making the device easy to use and quite portable.
Typical Applications
- HVAC: Diagnosing and optimizing systems through measurement of air velocity and volume in air ducts
- Cleanrooms and Laboratories: Controlled access and compliance with approved filtration systems and airborne particulate matter standards
- Industrial Equipment and Machinery: Monitoring ventilation systems for safe operations
- Outdoor Recreation: Sailing, kite surfing, paragliding, flying with drones, hiking, or other activities.
- Construction: Measurement of airflow in semi-ventilated enclosures or temporary structures.
Best For
Like other anemometers, the Mestek AM620 vane anemometer is attuned to the HVAC wind measurement needs of specialists, engineers, technicians, and enthusiasts needing precise wind measurement.
Their robust handheld construction makes them especially suited for all weather conditions. An easy-to-read display and a simple, intuitive interface further complement this feature. For field conditions as well as indoors, they provide plenty of versatility. The sensor’s performance is quite stable regardless of the prevailing conditions, which is why it is not as delicate as lab-grade devices like hot-wire models.
From monitoring wind flows in commercial HVAC systems to maintaining indoor environmental quality during outdoor activities, users can depend on these venturi-type anemometers’ precision, reliability, and accuracy.

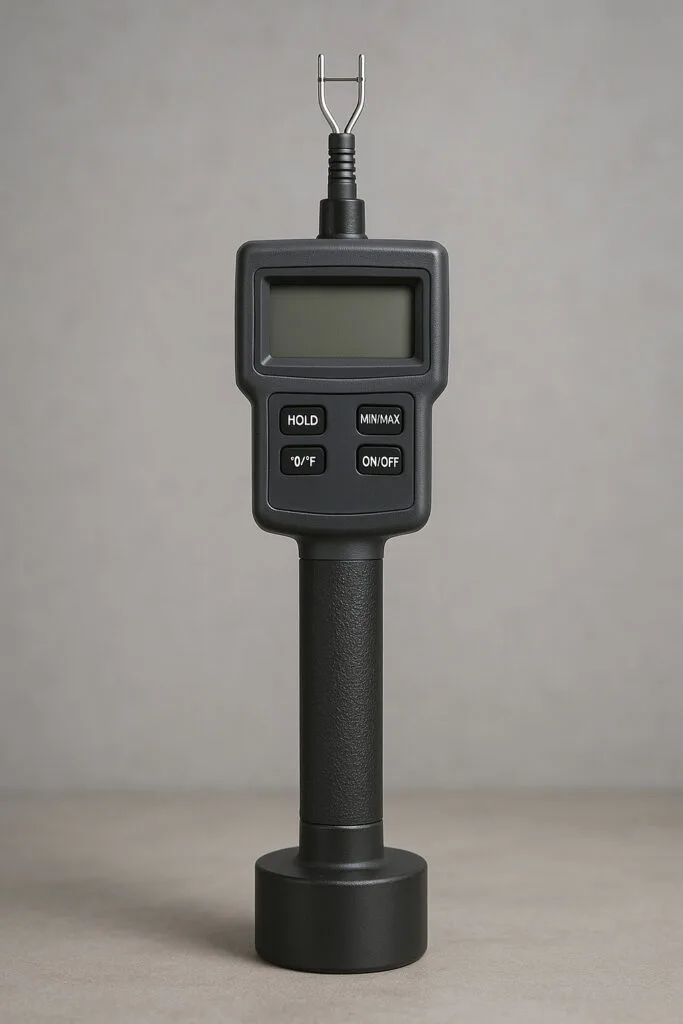

3. Hot-Wire Anemometers – More Precise, More Sensitive
The hot-wire anemometer’s guts allow it to become popular in scientific and technical situations requiring an extremely high sensitivity.
How It Works
An electrically heated fine wire (often tungsten) is used. As the wire is crossed by airflow, it cools. This temperature change changes the electrical resistance of the wire, a resistance that is, in turn, measured and converted into wind speed. For this reason, hot-wire anemometers are very sensitive to the slightest air motion.
Typical Uses
- Airflow and ventilation studies in the laboratory
- Cleanroom testing for the pharma or semiconductor industry
- Wind Tunnel Aerodynamics Research
- Calibration of HVAC in sensitive systems
Best For
Engineers, scientists, and technicians work in hermetic conditions of precision. Hot-wire models frequently measure low-speed airflows or capture faint currents that other anemometers would overlook entirely.
Limitations
Hot-wire anemometers are delicate instruments, making them unsuitable for fieldwork or outdoor use. Their fine sensors are easily damaged and require careful handling, routine maintenance, and frequent recalibration to ensure accurate readings.
What are the advantages of a Hot-Wire Anemometer?
If you’re in research labs, cleanrooms, or places where air is incredibly important to keep accurate, nothing works like the sensitivity on this machine.

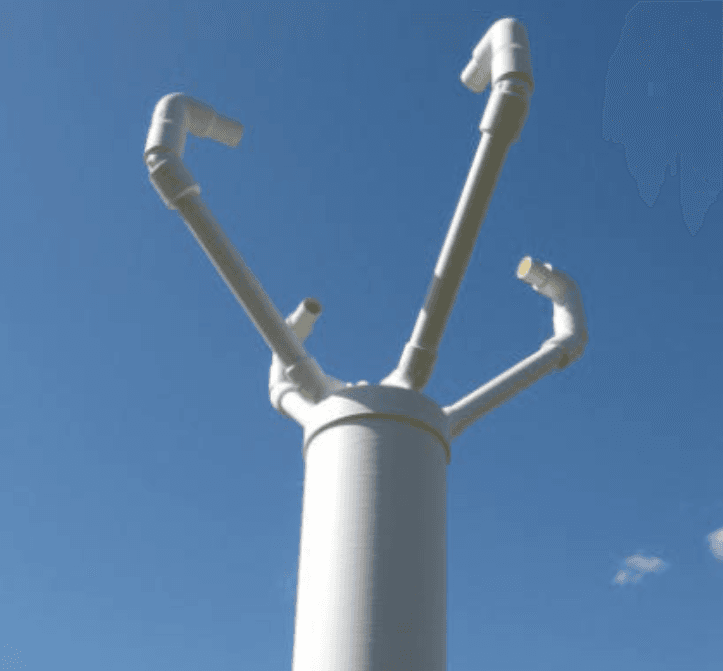

4.Ultrasonic Anemometers – Smart, Solid-State, and Maintenance-Free
Ultrasonic anemometers, the state-of-the-art wind measurement, are the choice for high-tech applications. They don’t have any moving parts; they use sound waves to measure wind.
How It Works
Those pulses of sound cross a narrow gap between ultrasonic transducers. Because wind rushes through them, it changes the time it takes sound to travel. The tool then uses this information to compute wind speed and direction, sometimes even in three dimensions, for accurate and up-to-date measurements.
Typical Uses
- Automated weather stations
- Marine and Aerial transportation
- Smart cities and environmental monitoring
- Systems of renewable energies (like optimization of wind turbines)
Best For
City planners, marine industry pros, and scientists who require a robust, low-maintenance wind speed sensor for unattended, long-term use. Ultrasonic anemometers are durable as they have no moving parts, which may be worn down or damaged by dust or the weather.
Why opt for an Ultrasonic Anemometer?
They’re fast, extremely reliable, and capable of producing three-dimensional data. This is your gold standard for setting up a city, ship, or solar farm weather station.
So, Which Anemometer Type Is Right for You?
With a wide range of anemometer types on the market, here’s a quick comparison to help you decide:
| Anemometer Type | Ideal User | Key Features | Drawbacks |
| Cup | Weather stations, agriculture | Durable, simple, long-term | Bulky, no direction data |
| Vane | HVAC technicians, outdoor users | Portable, direction-aware | Less precise at very low speeds |
| Hot-Wire | Labs, research, cleanrooms | Portable, direction-aware | Fragile, indoor-only |
| Ultrasonic | Industrial systems, smart cities | No moving parts, 3d data | Expensive, needs stable power |
Whether you’re packing your backpack for an outdoor adventure, installing an HVAC system in a towering high-rise, or establishing a remote weather station, there’s an anemometer perfect for your needs.
Frequently Asked Questions – FAQS
Q1: Which anemometer is best for super-light wind?
Go for a hot-wire anemometer—it’s ultra-sensitive and perfect for low airflow in labs. Ideal for laboratory settings or precision airflow studies where accuracy at low speeds matters.
Q2: What’s best for hiking, sailing, or drone flying?
A vane anemometer—portable, tough, and reads wind speed + direction. Great for outdoor enthusiasts who need reliable data on the go.
Q3: Want something hands-off and long-term?
Ultrasonic anemometers are perfect; they have no moving parts and require minimal maintenance. Ideal for fixed installations or remote monitoring over long periods.
Q4: Cup vs. vane: What’s the difference?
Cup = simple, strong, and fixed. Vane = compact, versatile, and mobile.
Q5: Do I pick the right one?
Match the tool to the task:
- Field = vane
- Lab = hot-wire
- Smart tech = ultrasonic
- Classic weather data = cup
Final Thoughts
You can’t see wind, but its effect is impossible to miss, from the influence on weather and infrastructure to how we navigate the world.
Fortunately, we now have a range of tools made possible by modern technology to measure it accurately and meaningfully.
Are you looking for a highly accurate yet tough wind speed monitor for the field, a sensitive anemometer for laboratory calibration, or a maintenance-free datalogger for industrial applications?
The right anemometer depends on understanding your circumstances and the advantages of each wind speed measuring device type.
With the knowledge of the four primary anemometer types, you’re ready to choose the right one to capture the wind like never before.
Ready to take control of your airflow measurements with precision and ease? The Mestek Instruments AM620 Anemometer is your go-to solution for fast, accurate, and reliable readings. Whether you’re a professional or a DIY enthusiast, this compact tool delivers big on performance.
