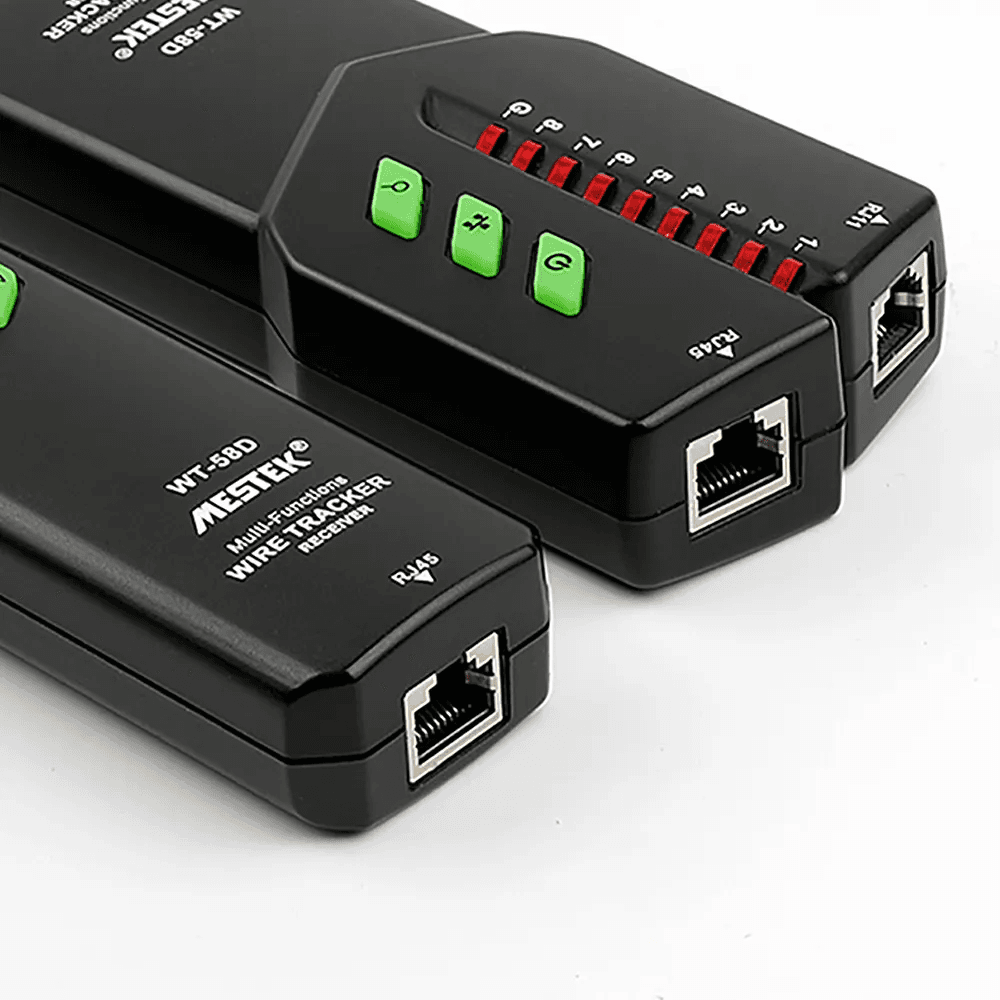

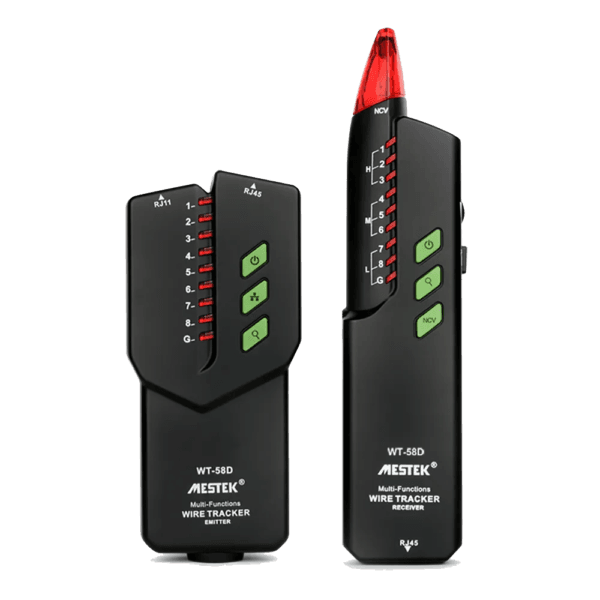

Wire Tracker WT58D
Efficiently track and test various network devices
Wire Tracker WT58D efficiently traces and tests cables for various network devices, including POE switches, routers, and fiber modems. It allows easy tracing and testing of telephone lines, coaxial video cables, and a variety of other cables. The device features an RJ45 cable connector tester and AC voltage detection (above 48V). Its fast breakpoint locator helps to quickly identify faults, saving maintenance time.
Functions
| Transmit signals | Digital Signal (no interference, no signal) |
| Internet Switch | Internet Switch/Router /Modem |
| Wire Track | Directly track wire type: RJ45,RJ11 and other Weak Current Electric Wires |
| Sequence collation | Open circuit, Short circuit, detection of cable line sequence |
| Test the positive and negative poles of the wire | √ |
| Telephone Line Test | Identify the state of the working telephone line (clear, ring, busy) |
| Continuity | Judge continuity of the cables or wires |
| POE Switch Withstand Voltage | Wire track for POE Switch when the DC Voltage is less than 60V |
| Switch port sequence collation | Emitter directly check the sequence collation for Switch port Cables |
| Red Light | √ |
| Transmitting signal distance | 0-300m |
| Batteries | 9V 6F22(1PCS for Transmitter, 1PCS for Receiver) |
| Size | Receiver:190*40*23(mm) / Emitter: 140*60*25(mm) |
| Weight | About 425g |
| Safety Level | CE(EMC) |
