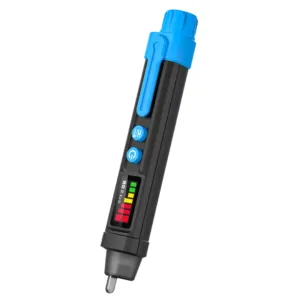

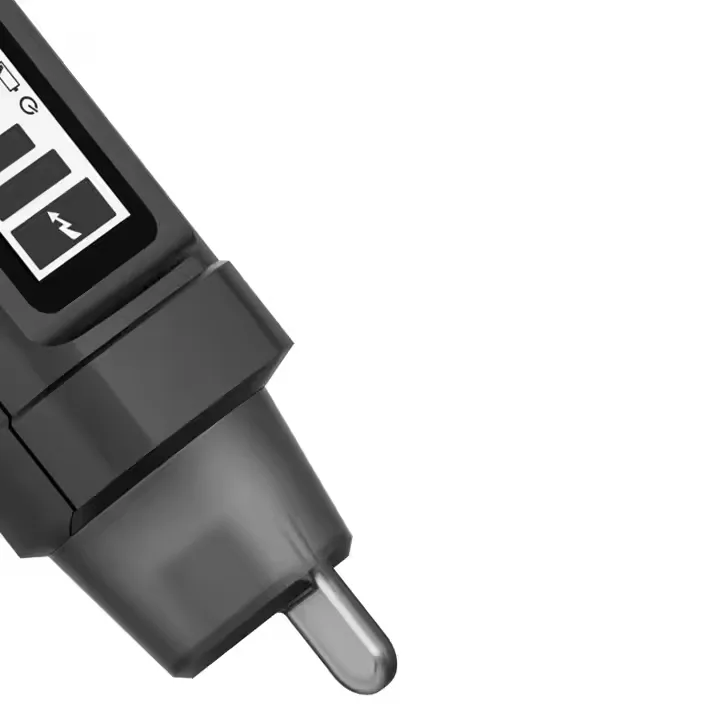

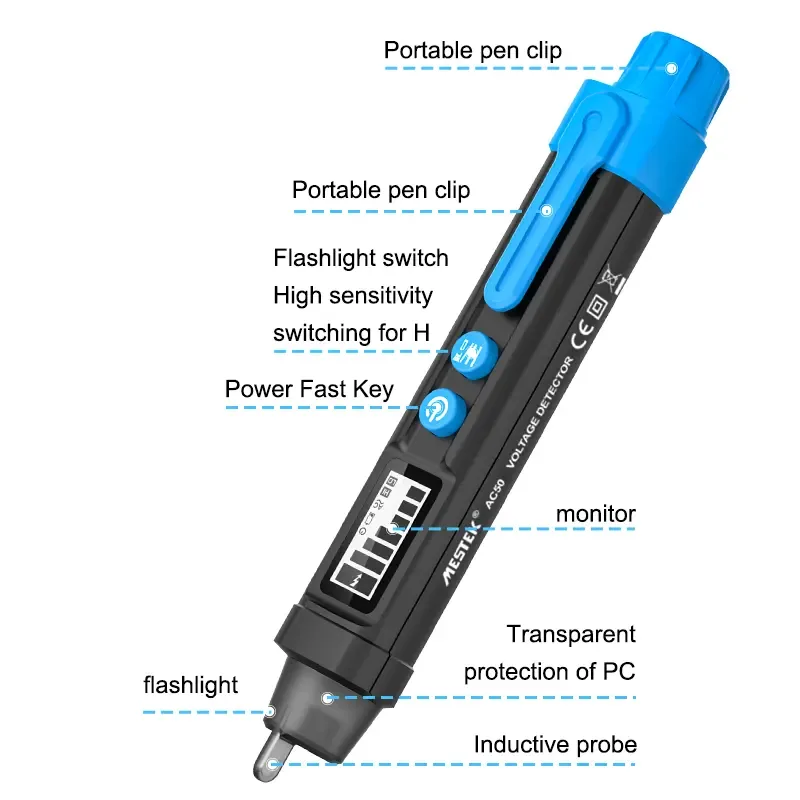

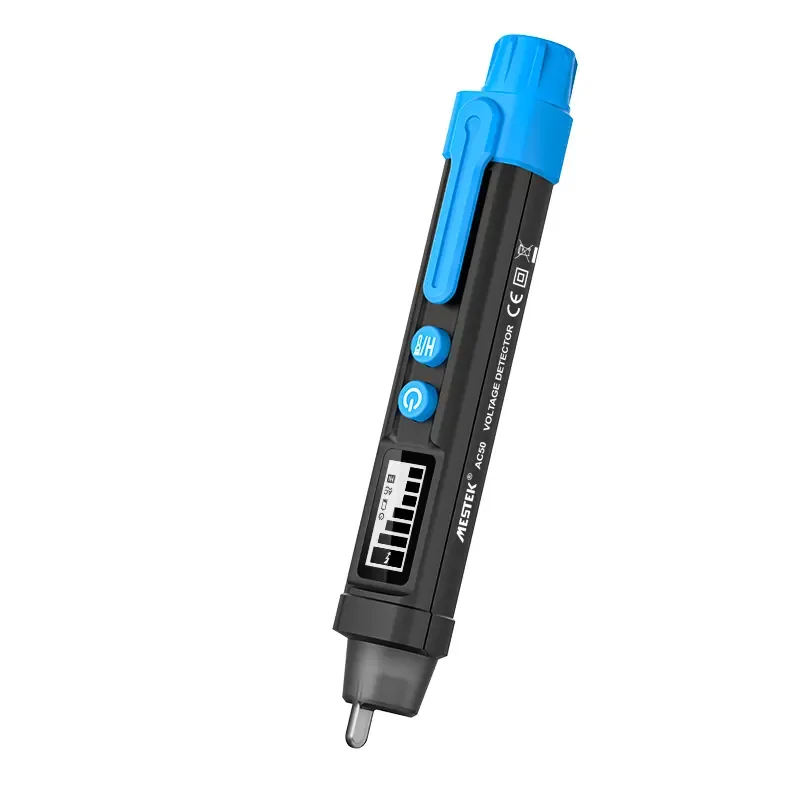

The AC50 AC Voltage Detector is a versatile and high-performance tool. It is equipped with a white LED flashlight that can be clearly seen in dark or low-light environments. The AC50 has features such as adjustable sensitivity, frequency detection and breakpoint detection. In the dual voltage range (12~1000V / 48~1000V), three warning methods are provided: screen display, LED indicator and sound alarm. This enables it to be used flexibly in different environments. The AC50 is designed to be rugged and can withstand a drop of up to 2 meters. It also has a line identification function to ensure safe operation. It also meets the CE CAT Ⅲ 1000V/CE CAT III 600V safety standards. The device will automatically shut down after 5 minutes of inactivity to save battery and weighs only 45g.
| Screen display | Black and white screen |
| AC voltage range | 12~1000V/48~1000V |
| Frequency | 50 Hz /60Hz |
| Type of alarm | Display and sound and light alarm |
| Flashlight | LED light |
| Automatic shut-down | About 5 minutes |
| Live wire identification | According to the signal indicating light, display analog bar, sound |
| Sensitivity | Two alternatives |
| Usage temperature | 0~40°C |
| Altitude | <2000m |
| Security level/phase | CE CAT.Ⅲ 1000V / CAT.IV 600V |
| Power Supply | 2*1.5V AAA battery |
| Product size | 160*23*27（mm） |
| Product weight | About 40g (excluding battery) |
| Standard Accessories | Voltage Detector-User Manual-Batteries-Color Box |
