Combustible Gas Detector-temperature test CGD02A
Color analog bar + digital LCD display

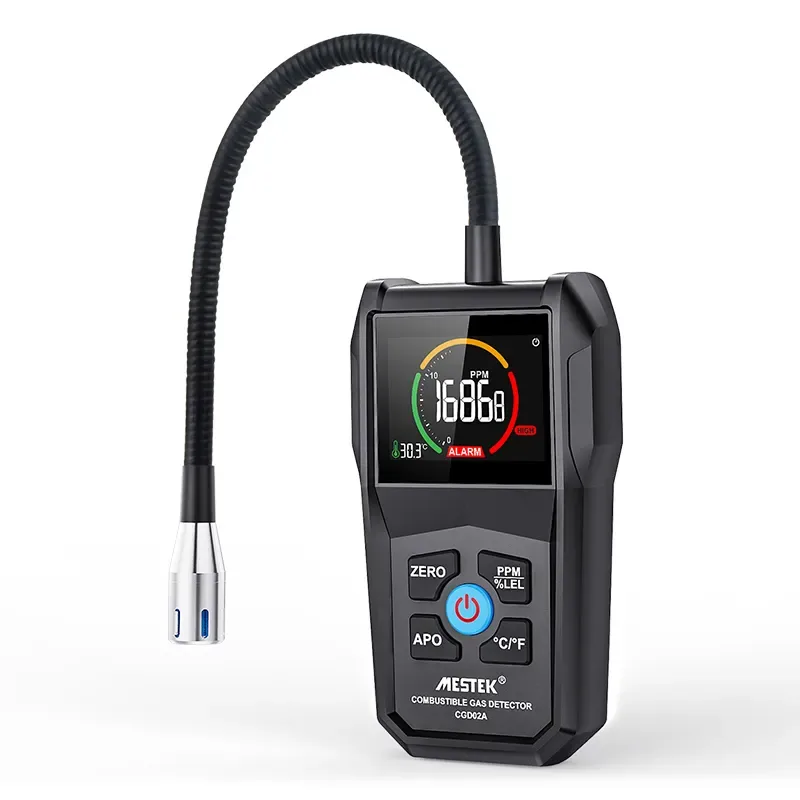

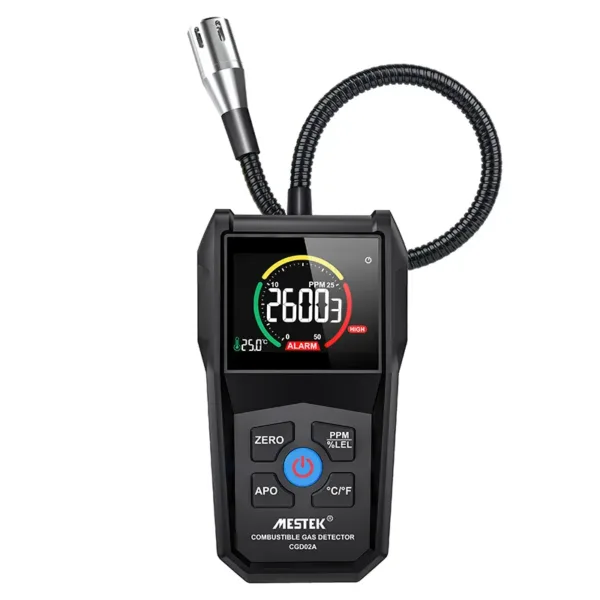

The Combustible Gas Detector CGD02A is a high-performance gas detector with a color analog bar and a digital LCD display. It supports a wide range of gas concentration detection, covering 1-100% (volume concentration) and 50-50000 PPM (unit concentration), making it suitable for various scenarios. The CGD02A features a metal hose design that enhances flexibility and durability. Additionally, it includes an ambient temperature measurement function, further improving its versatility.
Functions
| Detecting gas | Natural gas,coal gas and liquefied petroleum gas |
| Detection flow | 1L/min |
| Gas resolution | 1%LEL/1PPM |
| Temperature resolution | 0.1°C/0.2°F |
| Gas measurement range | 0-100%LEL/50-50000PPM(Automatic) |
| Temperature measurement range | 0~50°C32~122°F±(1°C/2°F) |
| Power supply | 3*1.5V AAA |
| Measurement accuracy | ±5%FS |
| Sampling mode | Diffusion type |
| Response speed | 2 seconds |
| Calibration mode | Automatic calibration after starting up for 30 seconds |
| Automatic shut-down | About 10 minutes |
| Color VA reverse display screen | √ |
| Type of alarm | Sound,screen display |
| Warm up time | 30 seconds |
| Length of flexible metal hose | 270mm |
| Size | 130*73*33 |
| Weight | 270g |
Factory Showcase

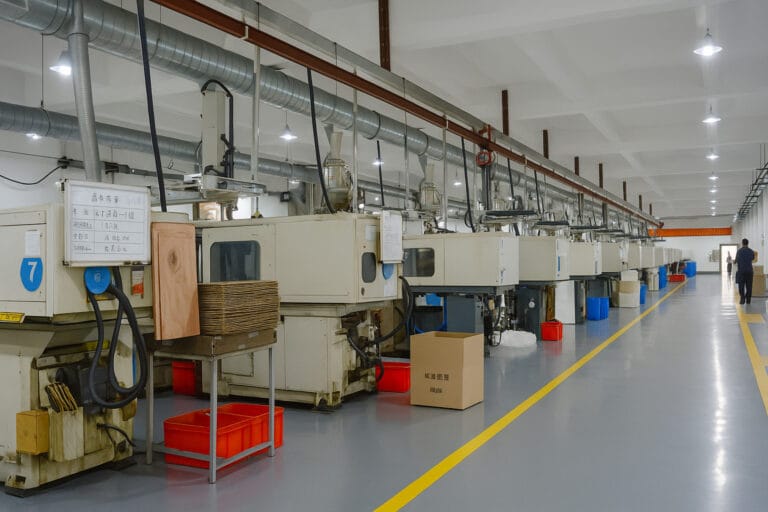

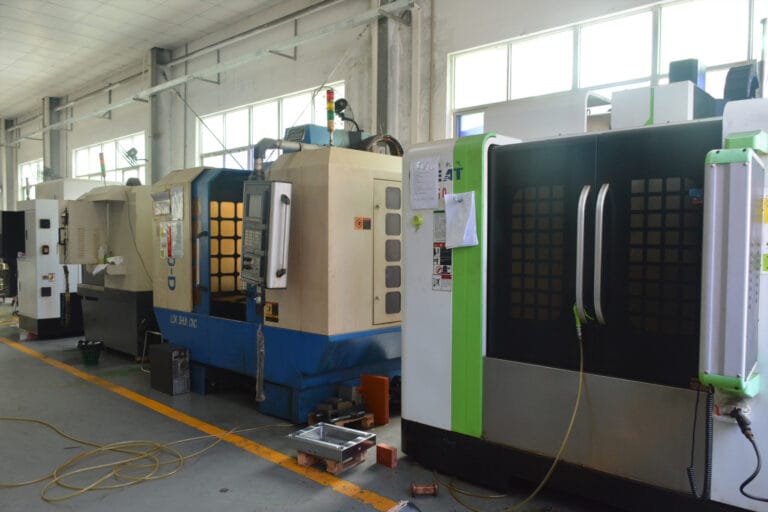

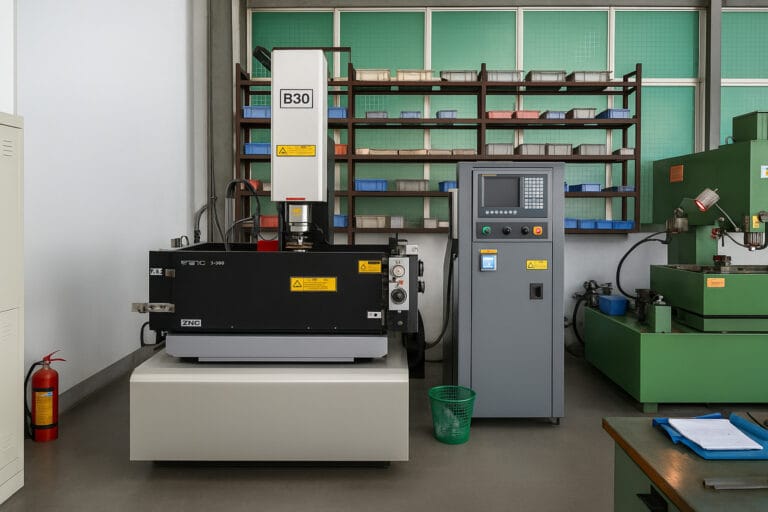

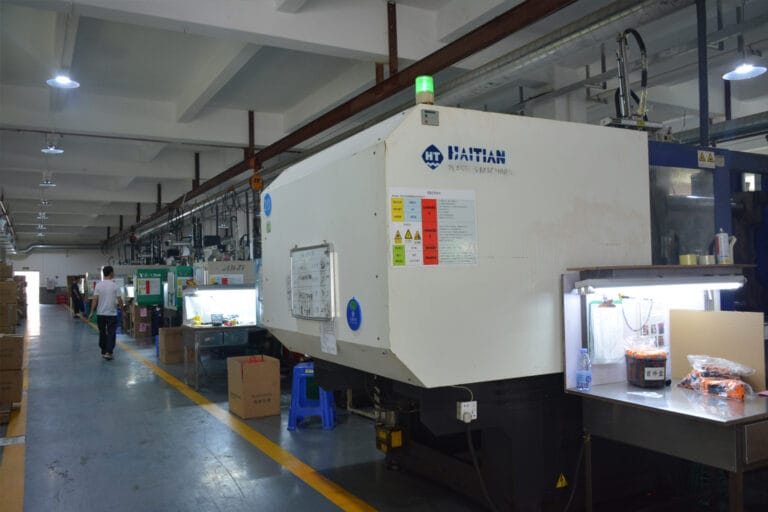

Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
