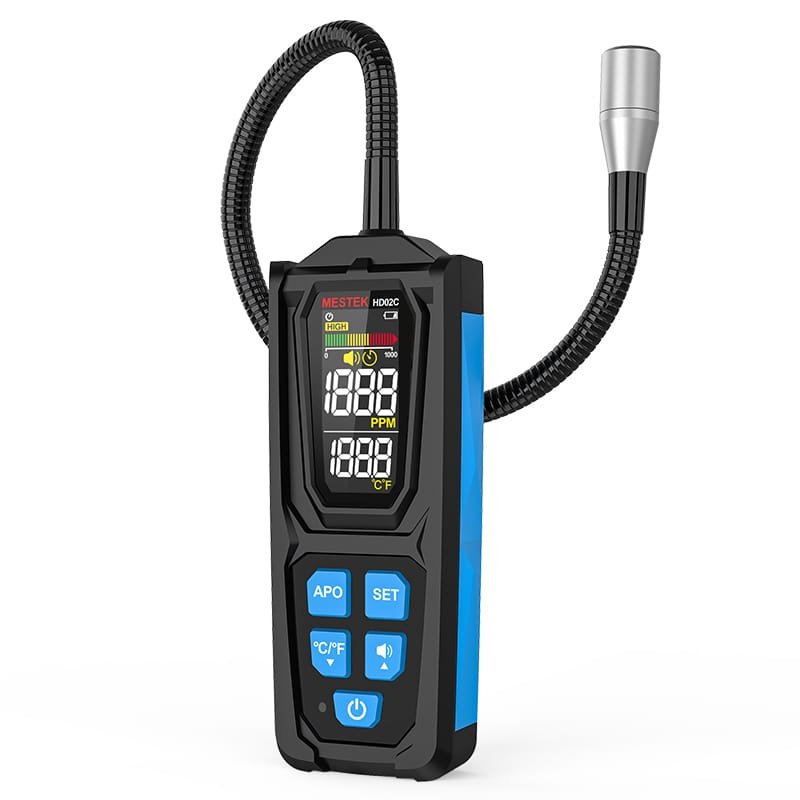

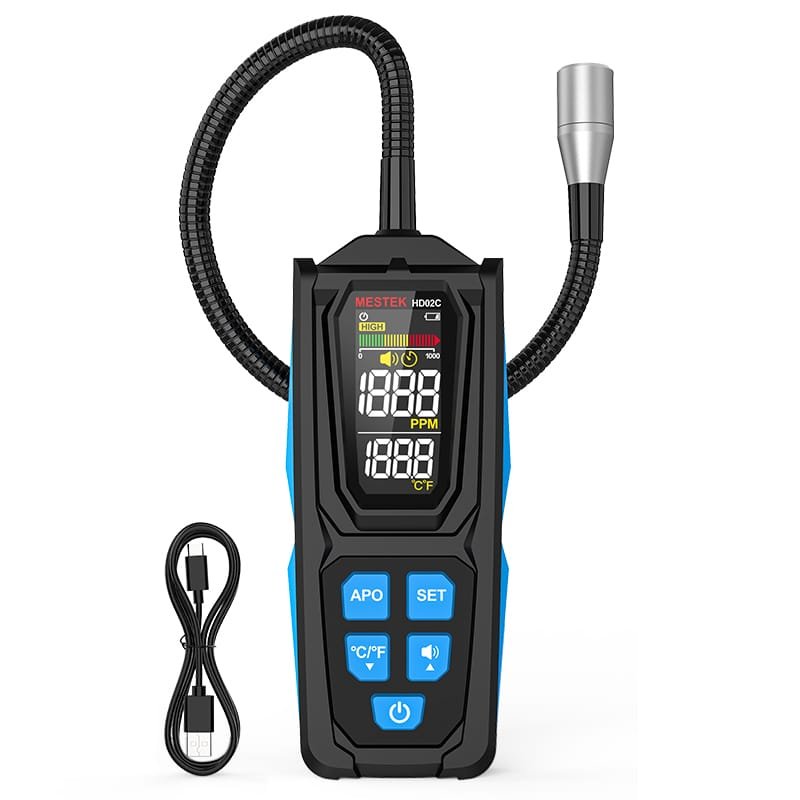

Halogen Leak Detector HD02C stands out among HVAC refrigerant leak detectors by combining high sensitivity with modern rechargeability. It detects R22, R32, and R134a with a resolution of 1 PPM over a 0–1000 PPM range, and sounds an alarm at a default threshold of 600 PPM via beep, screen display, and red backlight — ideal for spotting small leaks before they turn serious. A Type-C USB interface mean you’ll spend less time replacing batteries. A high-sensitivity sensor reacts in under 10 seconds after a 30-second preheat calibration. With display clarity, reliable alarms, and automatic shutdown after 10 minutes, this device delivers rapid leak detection, reduced downtime, and increased safety for HVAC system maintenance.
Functions
| Detect gas | R22.R32.R134a |
| Display | Color screen |
| Sampling method | Diffusion type |
| Measuring range | 0-1000PPM |
| Measuring Resolution | 1PPM |
| Maximum sensitivity | R22/T134A@0.5 Ounces per year (14 grams per year) |
| Preheating calibration time | 30 seconds countdown |
| Response time | <10 seconds |
| Default alarm value | 600PPM |
| Alarm method | Beep alarm + screen display + red backlight alarm |
| Temperature measurement range | -10℃-60℃ |
| Accuracy | ±1.5℃ |
| Resolution | 1PPM |
| Automatic shutdown | 10 minutes |
| Working current | About 120mA |
| Operation temperature | 0-60℃ |
| Working humidity | ≤90%RH |
| Storage environment | -10-60℃/≤85%RH |

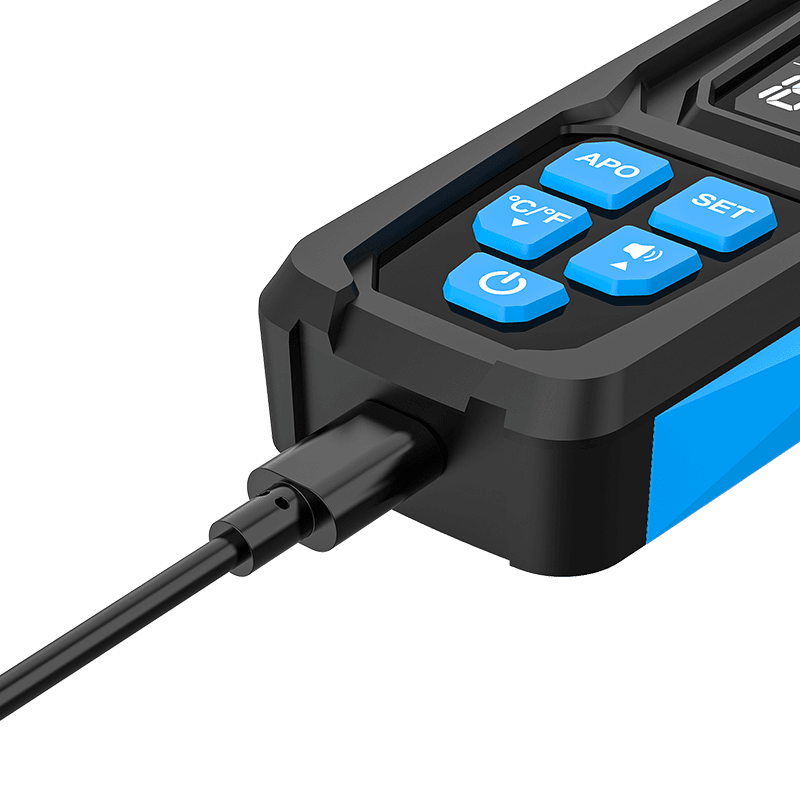

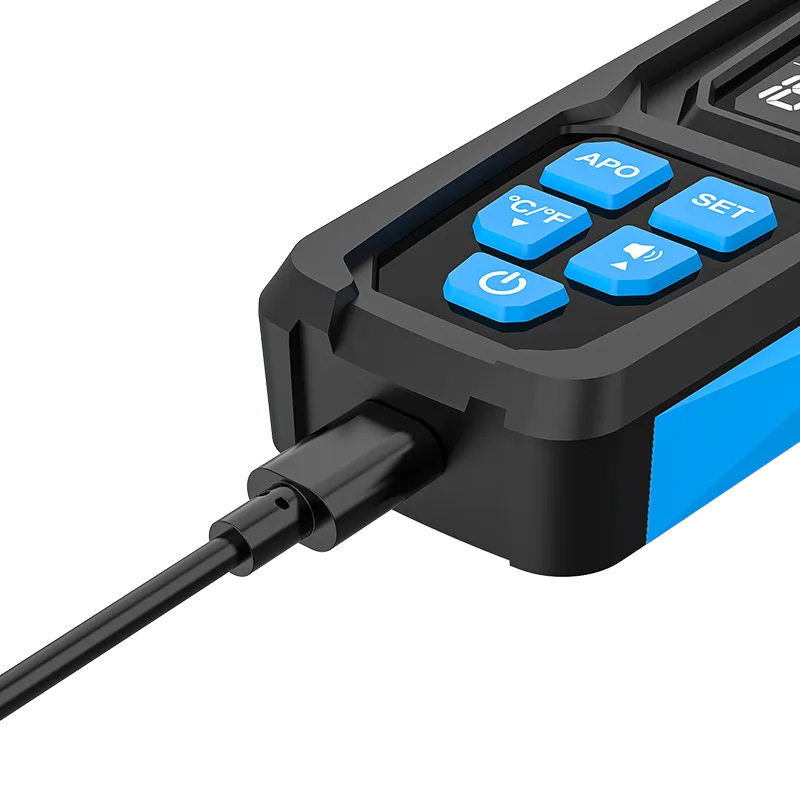

| Charging interface USB | Type-C/5V/1A charging interface (lithium battery) |
| Power support | Built in lithium battery/1000mAh/3.7v |
| Size | 135*57*29 (mm) |
| Weight | About 215g (excluding battery) |
