Halogen Leak Detector HD01C

With high and low sensitivity adjustment and charging function

Our business team will respond to you within 24 hours.

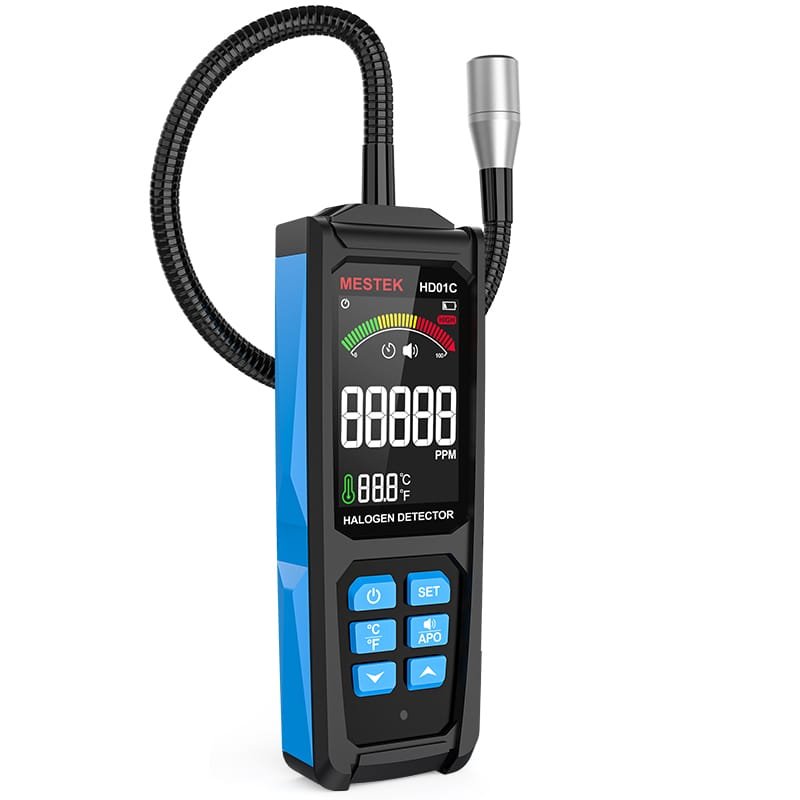

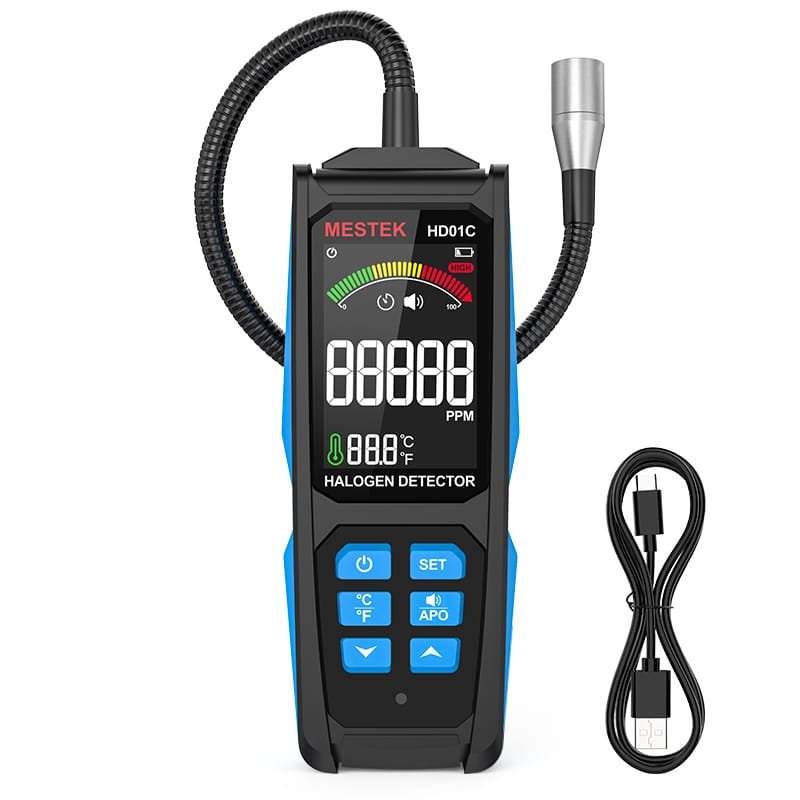

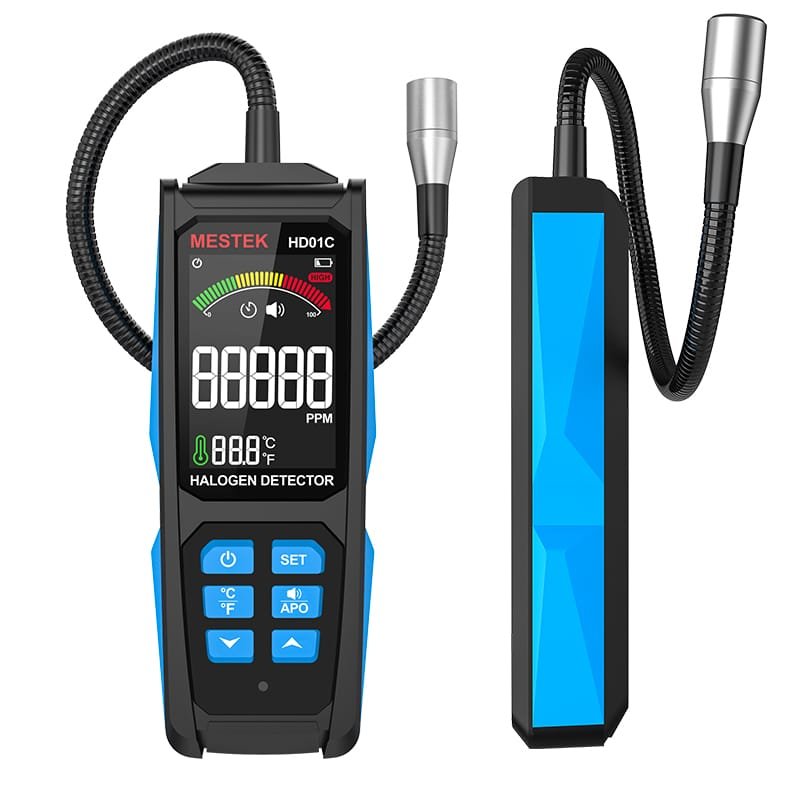

Mestek Halogen Leak Detector HD01C quickly and accurately detects refrigerants such as R22, R32, and R134a. Compared to the HD01, this upgraded model features a rechargeable USB Type-C port, eliminating the need for frequent battery replacements and offering dual high/low sensitivity settings to accommodate diverse leak detection environments. Its measurement range is 0–1000 PPM, with a maximum sensitivity of 0.5 ounces per year and a response time of less than 10 seconds, ensuring reliable performance during maintenance and safety inspections. Halogen Leak Detector HD01C incorporates beep, vibration, and analog display alarms for clear notification, while its compact design and automatic power-off feature enhance usability and efficiency in the field.

Functions

Detect gasR22.R32.R134a
DisplayColor screen
Sampling methodDiffusion type
Range of measurement0-1000PPM
SENS-H50PPM-1000PPM
SENS-L500PPM-1000PPM
Maximum sensitivityR22/T134A@0.5 Ounces per year (14 grams per year)
Preheating calibration time30 seconds countdown
Response time<10 seconds
Alarm methodBeep alarm + analog display + Vibration alarm
Temperature measurementRange:-10℃-60℃
Accuracy:±1.5℃
Resolution:0.1℃
Automatic shutdown10 minutes
Operation currentAbout 140mA
Operation temperature0-60℃
Working humidity≤90%RH
Storage environment-10-60℃/≤85%RH
Charging interface: USBType-C/5V/1A
Power supplyBuilt-in / 18650 lithium battery / 2000mAh / 3.7v
Size135*57*29 (mm)
WeightAbout 276g

Factory Showcase

Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
