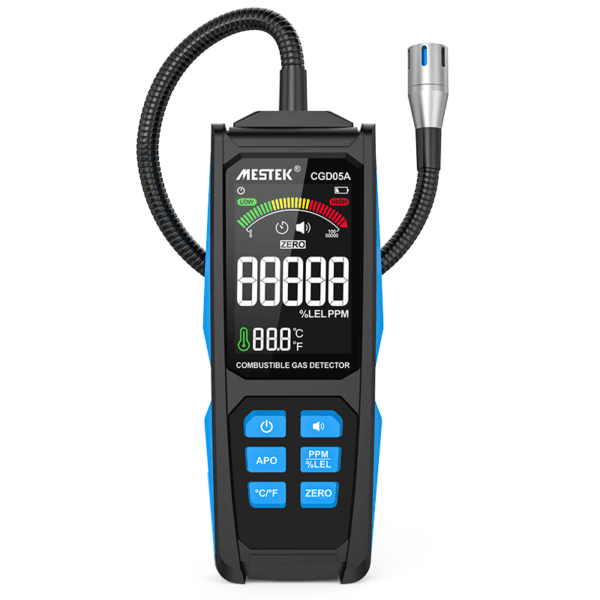

Combustible Gas Detector-0~100%LEL CGD05A
Digital analog bar dual display
The CGD05A combustible gas detector is an advanced gas detection device that integrates a color digital and analog bar display, providing intuitive digital readings and trend analysis at the same time. It supports gas concentration measurement in the range of 0~100%LEL and 50~50000PPM. The CGD05A also has a temperature measurement function of 0~50°C, which is convenient for real-time monitoring of ambient temperature changes and ensuring the accuracy of the detection environment. The measurement accuracy of the device is less than ±5%FS.
Functions
| Detecting gas | Natural gas,coal gas and liquefied petroleum gas |
| Detection flow | 1L/min |
| Gas resolution | 1%LEL/1PPM |
| Temperature resolution | 0.1°C/0.2°F |
| Gas measurement range | 0-100%LEL/50-50000PPM(Automatic) |
| Temperature measurement range | 0~50°C/32~122°F±(1°C/2°F) |
| Measurement accuracy | +5%FS |
| Sampling mode | Diffusion type |
| Response speed | 2 seconds |
| Calibration mode | Automatic calibration after starting up for 30 seconds |
| Automatic shut-down | About 10 minutes |
| Color VA reverse display screen | √ |
| Type of alarm | Sound and Visual Alarm |
| Warm up time | 30 seconds |
| Length of flexible metal hose | 270mm |
| Size | 130*73*33 |
| Weight | 270g |
