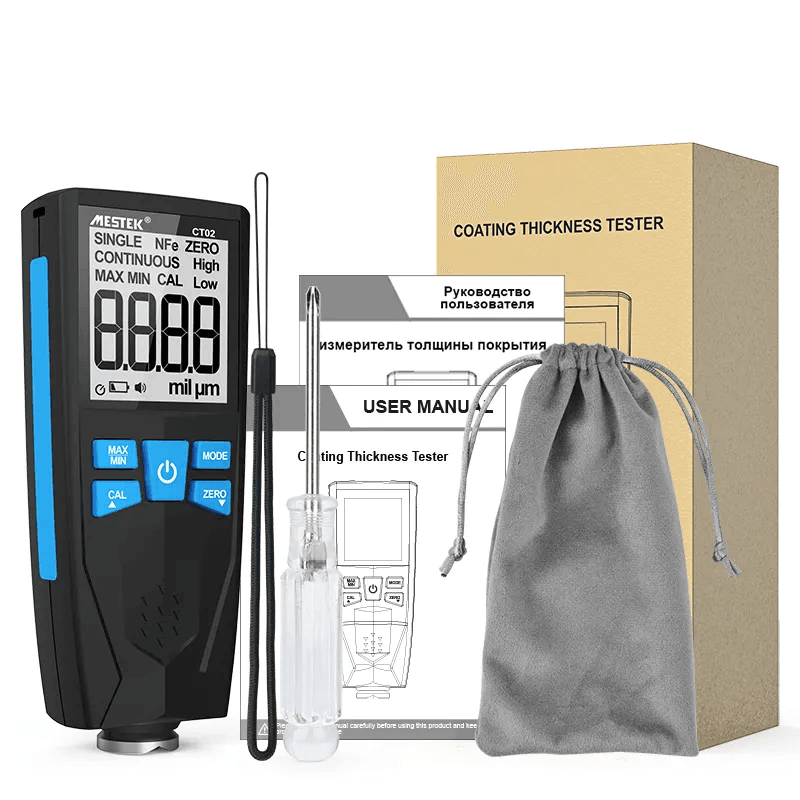

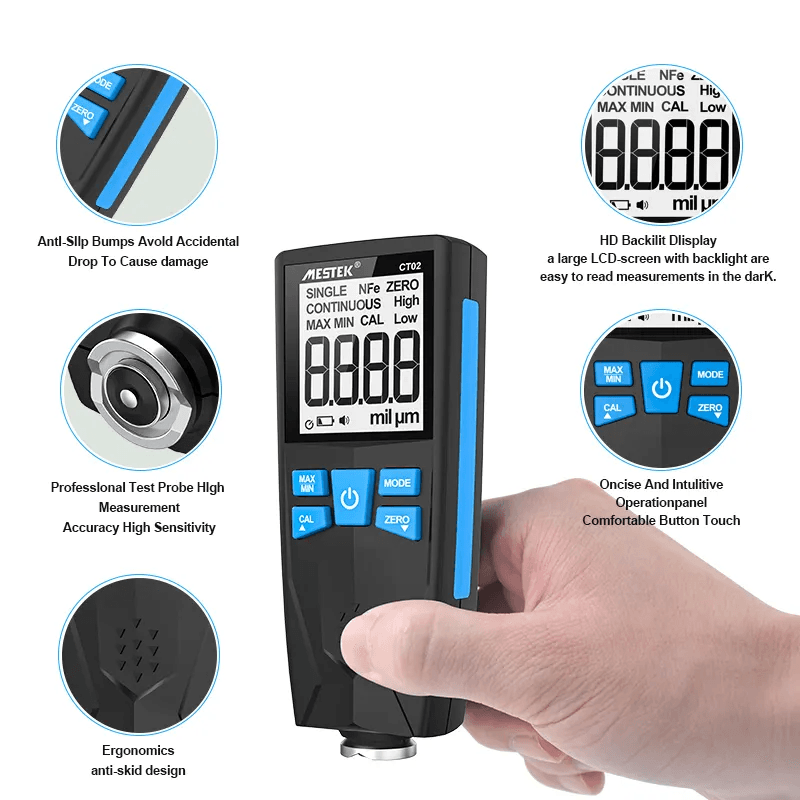

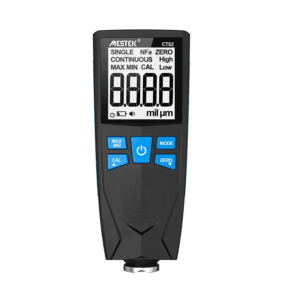

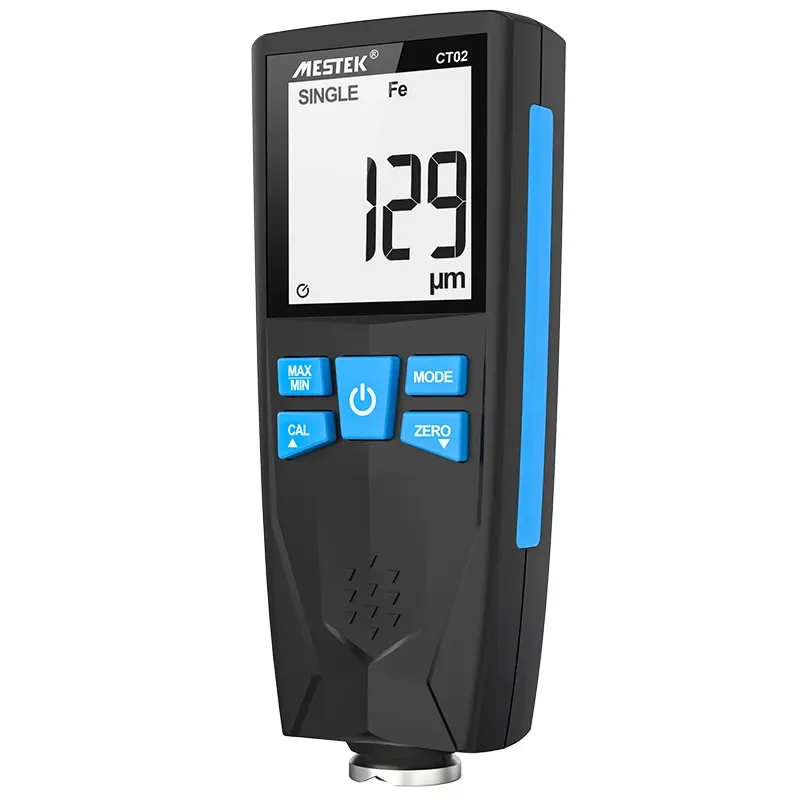

Coating Thickness Gauge CT02
Thickness gauge also available for industrial manufacturing
Coating Thickness Gauge CT02 is suitable for measuring coating thickness of iron-based and aluminum-based materials. It measures iron-based materials based on magnetic induction technology and aluminum-based materials based on eddy current effect. The measuring range is 0~1500 microns, with a resolution of up to 0.1 microns. It provides two modes: single measurement and continuous measurement. It meets the detection needs of various industrial scenarios. It is widely used in the fields of automobile manufacturing, metal processing and quality control.
Functions
| Type | LCD |
| Display | Iron base or aluminum base |
| Measuring base | Iron base: magnetic induction |
| Sampling method | Aluminum base: eddy current effect |
| Measuring range | 0-1500um |
| Resolution | 0.1um |
| Accuracy | Iron base or aluminum base/+(3%+2um) |
| Automatic shutdown | About 10 minutes |
| Measurement mode | single/continuous |
| Unit | um/mil |
| The radius of the minimum convex curvature | 5mm |
| The radius of the minimum concave | 50mm |
| The diameter of the minimum measuring area | 20mm |
| The minimum thickness of base material | Iron base or 0.5mm/aluminum base 0.3mm |
| Working current | About 30mA |
| Working environment | 0~50℃/10~80%RH |
| Power | 2*1.5V AAA |
| USB | NO |
| Size | 120*48*26(mm) |
| Weight | About 95g(excluding battery) |
