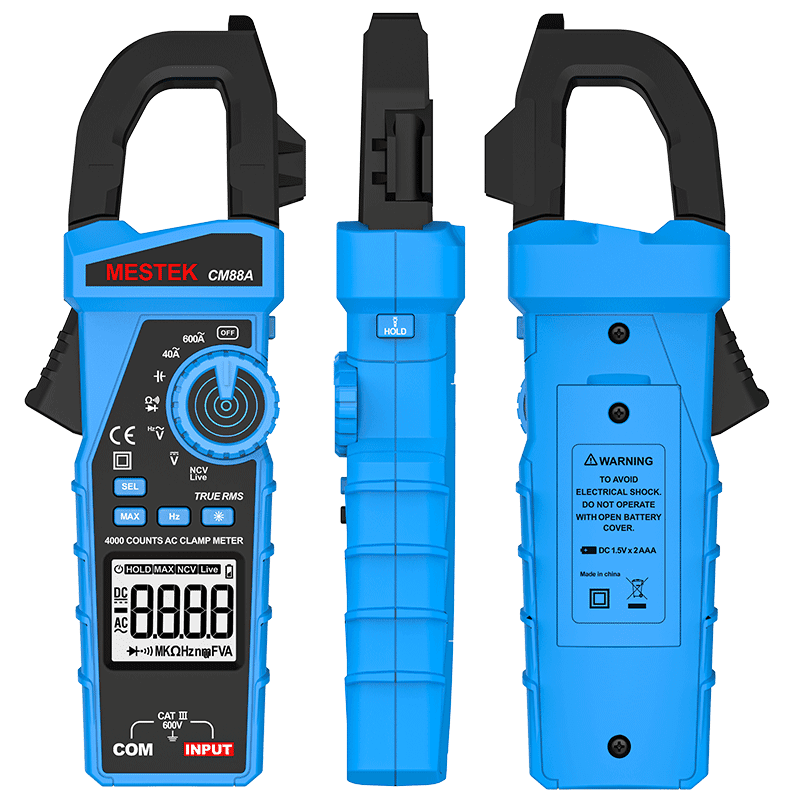

CM88A
4000 count, overload protection voltage TRMS clamp meter
Mestek CM88A clamp meter features auto-ranging and overload protection up to 600V. It ensures safe and accurate testing for both electricians and DIY users. Place a single wire in the clamp head, close it fully, and the screen displays the current instantly. Press the HZ key to measure frequency and check voltage or current directly.
CM88A clamp ammeter includes a sensitive NCV detector. When near a live wire, the screen turns red and an alarm sounds based on voltage strength. Use the HOLD key to freeze data. A buzzer reminder prevents misoperation. For live wire identification with probes, the backlight and alarm provide instant alerts.With its LCD display, overload indication, auto shut-off, backlight, and flashlight, the CM88A True RMS clamp meter provides reliable performance for various electrical tasks.
Functions
| Maximum display value | 4000 Counts |
| Full range overload protection voltage | 600V |
| AC/DC Voltage | 600V |
| AC Current | 600A |
| Automatic range | Yes |
| Resistance | 40MΩ |
| Capacitance | 4mF |
| Data Hold | Yes |
| NCV | Non-contact AC Voltage Detection. |
| LIVE | Live wire identification |
| Continuity/Diode Test | √ |
| Flashlight for Dark Area. | √ |
| MAX value locking | √ |
| Screen | LCD |
| Over-range display | OL or-OL |
| Sampling time | About 3 times/second |
| Automatic shutdown time | About 15 minutes |
| Backlight automatic off time | About 3 minutes |
| Flashlight automatic off time | About 5 minutes |
| Power Supply | 2*1.5V AAA batteries |
| Working temperature | 0C~50C |
| Storage temperature | -10C~60C |
| Size | 218*75*39(mm) |
| Jaw size | 30mm |
| Weight | About 245g (without battery) |
Factory Showcase
Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
FREQUENTLY ASKED QUESTIONS
What's the difference between a clamp meter and a multimeter?
A clamp meter is specialized for current measurement through its jaws, especially high amperage. A multimeter offers broader functions like voltage, resistance, and continuity testing, but typically measures current via test leads.For a more detailed comparison, please refer to the blog:clamp electric meter vs multimeter.
Can a clamp meter measure both AC and DC current?
Yes, many modern clamp meters can measure both AC and DC current. Be sure to check if the model specifically supports DC current, as not all do.
How do I measure current with a clamp meter?
To measure current, first set your clamp meter to the correct current mode—AC or DC. Then open the clamp jaws and place them around a single live conductor, not the entire cable, as clamping around both live and neutral wires will cancel out the current reading. Make sure the wire is centered in the clamp for better accuracy. Once clamped, the current value will appear on the display. For DC current measurements, some models require you to zero the meter before use to ensure accuracy.
What is the maximum current a clamp meter can measure?
It depends on the model. Entry-level clamp meters typically measure up to 400A–600A, while industrial models can go up to 1000A or more.
What is non-contact voltage (NCV) detection in a clamp meter?
NCV detection is a safety feature that lets you detect the presence of AC voltage without physically touching a wire. The clamp meter senses the electromagnetic field emitted by a live wire and alerts you with a visual or audible signal. It’s a fast and convenient way to identify live wires or check for voltage in outlets, switches, and breaker panels. However, NCV only indicates the presence of voltage—it doesn’t tell you the exact voltage level, so it should be used as a preliminary safety check rather than a precise measurement.
How accurate is a clamp meter?
Clamp meter accuracy varies by model and technology. Most standard models offer ±2% to ±3% accuracy, while high-end True RMS meters can reach ±1%. Accuracy may be affected by wire position, interference, or temperature. For best results, follow the manufacturer’s usage and calibration guidelines.
