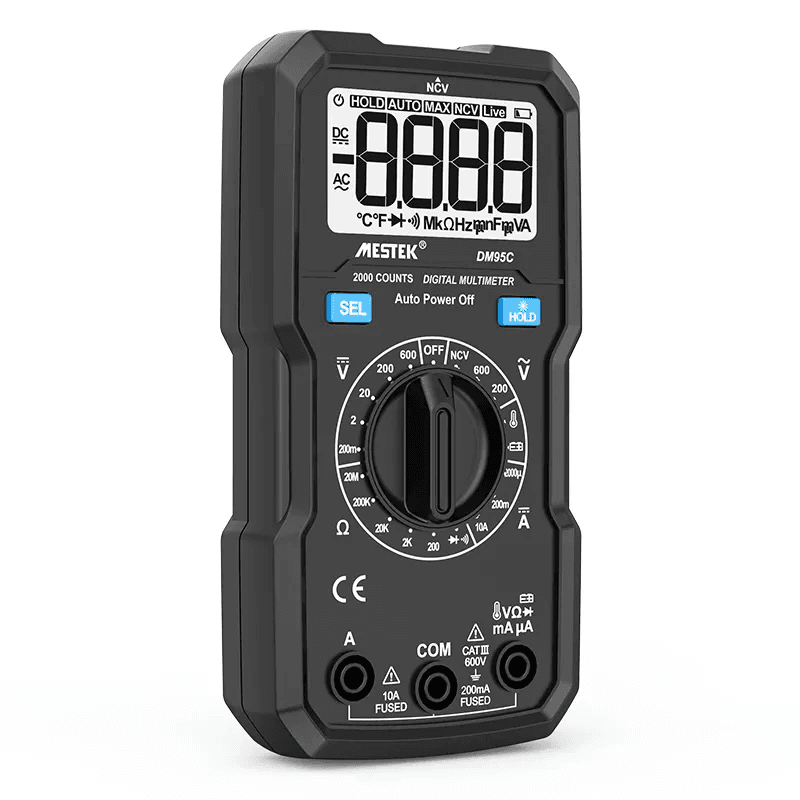

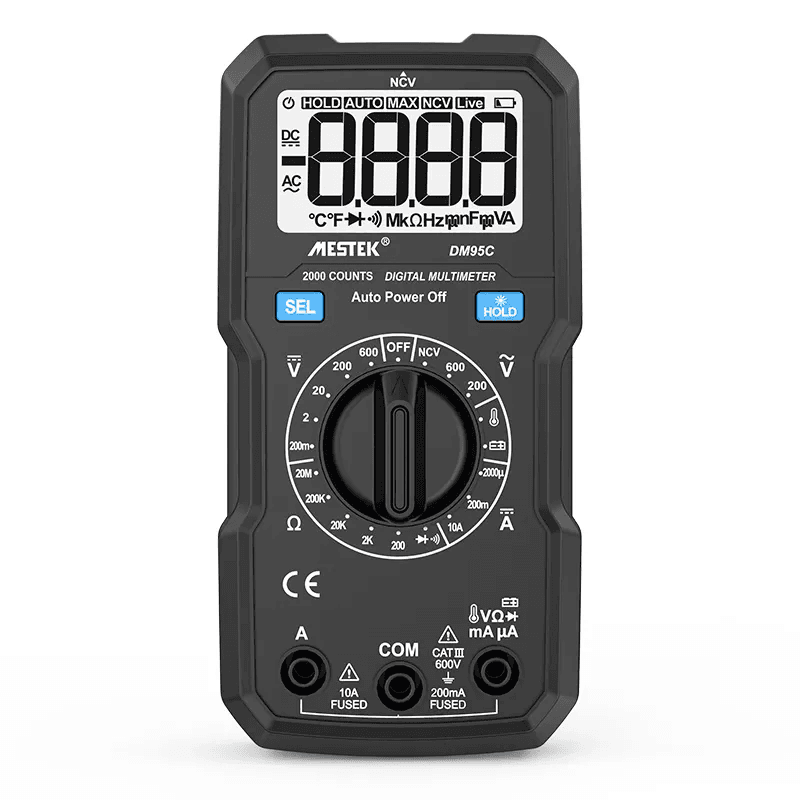

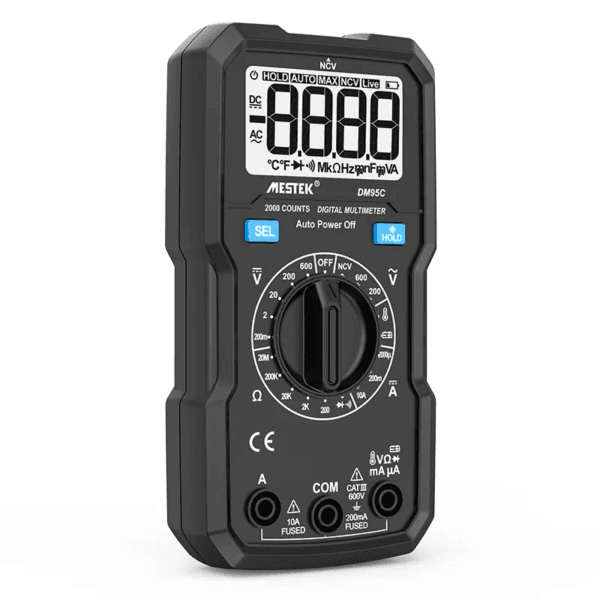

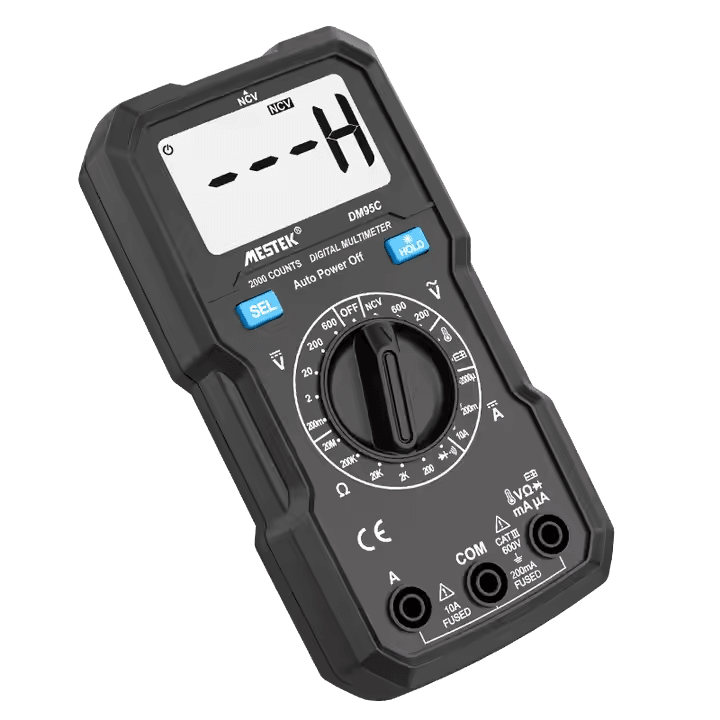

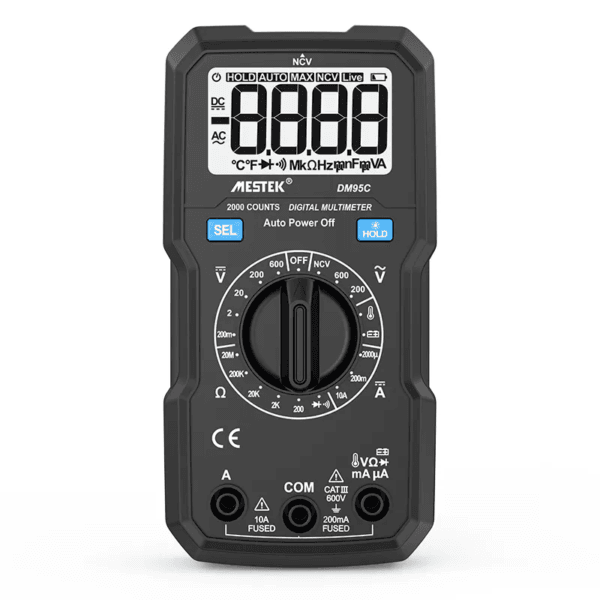

Portable digital multimeter DM95C
Portable multimeter capable of temperature measurement
The portable digital multimeter DM95C is equipped with a 2000-digit display. It supports DC voltage up to 600V, AC voltage up to 600V, and DC current up to 10A. This compact multimeter also features non-contact voltage detection, continuity, and diode check functions. The DM95C has an accurate temperature measurement function from -20°C to 1000°C (-4°F to 1832°F). At the same time, it also has automatic shutdown, data retention, and meets CAT III 600V safety standards. The DM95C provides core functions in a compact handheld design.
Functions
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+2) |
| AC Voltage | 200V/600V | ±(1.2%+10) |
| DC Current | 2000uA/200mA/10A | ±(1.5%+2) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(1.0%+2) |
| Continuity/Diode Check | Auto check Continuity or Diode | ±(1.2%+3) |
| Non-contact AC Voltage Detection | Yes | ±(0.8%+3) |
| °C/°F | -20°C~1000°C/-4°F~1832°F | ±(1.0%+3) |
| Display | 2000 counts | |
| Manual/Auto/Smart | Manual | |
| Auto Power off | √ | |
| Data Hold | √ | |
| Batteries | 2*1.5V AAA | |
| Size | 150*70*50(mm) | |
| Weight | About 195g | |
| Safety Level | EN61010-2-033,CAT Ⅲ 600V | |
| Accessories | Multimeter-Probe-Batteries-User ManualColor Box |
Factory Showcase
Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
FREQUENTLY ASKED QUESTIONS
Why does my multimeter show “OL” or “1”?
When your multimeter displays “OL” (Over Limit) or “1”, it usually means the measurement exceeds the selected range or the circuit is open. For example, if you’re measuring resistance and the probes aren’t touching anything (or measuring an open circuit), your multimeter will show “OL” or “1” to indicate that the value is out of range. Switching to a higher range or reconnecting the probes usually resolves the issue.
How often should I calibrate my multimeter?
A multimeter should generally be calibrated once a year to ensure accuracy, especially in professional or industrial environments. However, if you use your multimeter occasionally for basic home electrical tasks, you may calibrate it less frequently. Always refer to the manufacturer’s guidelines, and if you notice inconsistent readings, get it calibrated sooner.
Can a multimeter measure temperature?
Yes, many digital multimeters come with a built-in temperature measurement function. These models typically include a K-type thermocouple probe that allows you to measure temperatures in Celsius or Fahrenheit. Check your multimeter’s specifications to see if it supports this feature. It’s especially useful for HVAC technicians or electronics troubleshooting.
What does "True RMS" mean and do I need it?
“True RMS” (Root Mean Square) is a technology in advanced digital multimeters that allows accurate measurement of AC signals, even when they are not pure sine waves. If you’re working with variable frequency drives, motors, or other equipment generating distorted waveforms, a True RMS multimeter provides more reliable readings than an average-responding one. For professional and industrial use, True RMS is highly recommended.
Can I test batteries with a multimeter?
Yes, a multimeter can test batteries by measuring their DC voltage. Simply set the multimeter to DC voltage mode, connect the red probe to the battery’s positive terminal and the black probe to the negative terminal. For example, a 1.5V AA battery should read close to 1.5V when fully charged. If the voltage is significantly lower, it’s time to replace the battery.
What does the “auto-ranging” feature do?
The auto-ranging feature in a multimeter automatically selects the correct range for the measurement you’re performing. This means you don’t need to manually set the voltage, current, or resistance range—it simplifies operation, reduces errors, and speeds up testing. It’s a must-have for beginners and also convenient for professionals handling diverse measurement tasks.
