DM100A
Digital multimeter with blown fuse warning and live wire identification function

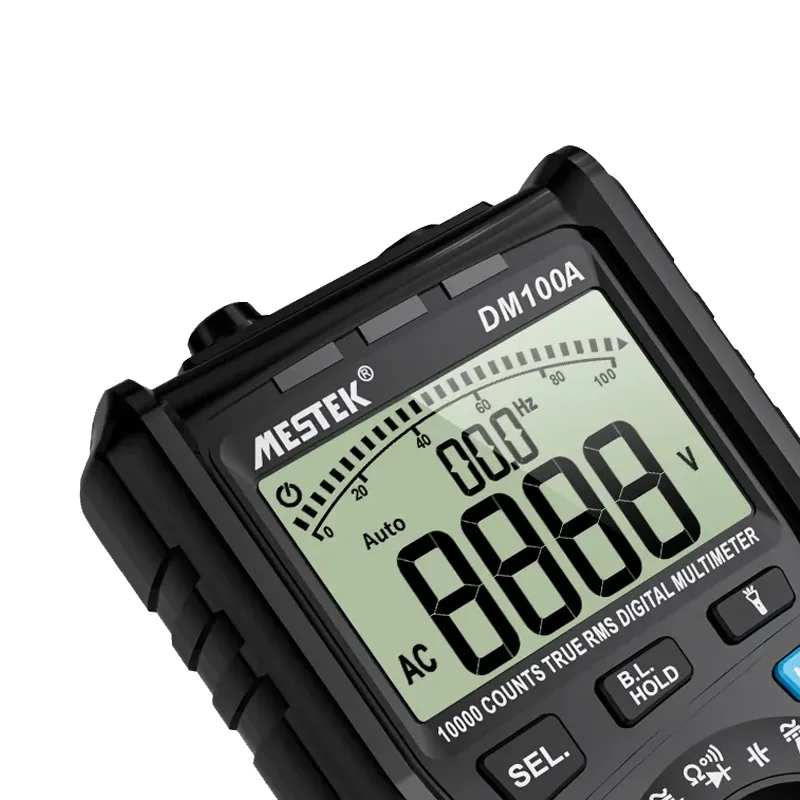

DM100A is a high-performance digital multimeter with 10,000 counts and multiple measurement functions. DM100A supports more accurate ACV/ACA True-RMS measurement. It provides optional voltage measurement ranges (1V, 10V, 100V, 1000V). It has non-contact AC voltage detection, automatic diode check and continuity functions. In addition, it also has fuse blown warning and neutral and live wire identification functions,Ensure safer and more convenient use.
Functions
| DC Voltage | 1000mV/1V/10V/100V/600V | ±(0.5%+3) |
| AC Voltage | 1000mV/1V/10V/100V/600V | ±(1.0%+5) |
| DC Current | 9999uA/600mA/10A | ±(0.8%+3) |
| AC Current | 9999μA/600mA/10A | ±(1%+3) |
| Capacitance | 100nF/1000nF/10uF/100uF/1000uF/10mF | ±(3.5%+15) |
| Resistance | 1000Ω/10kΩ/100kΩ/1000kΩ/10MΩ/60MΩ | ±(0.8%+3) |
| Display | 10000 Counts | ±(1%+3) |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1kHz | |
| Hz | 10MHz | |
| Ω | 100MΩ | |
| Continuity | Sound And LED Alarm | |
| Diode Test | √ | |
| Batteries | 2*1.5V AA | |
| Size | 190*89*50(mm) | |
| Weight | About 500g | |
| Safety Level | IEC61010-1:2020 CAT Ⅲ 1000V | |

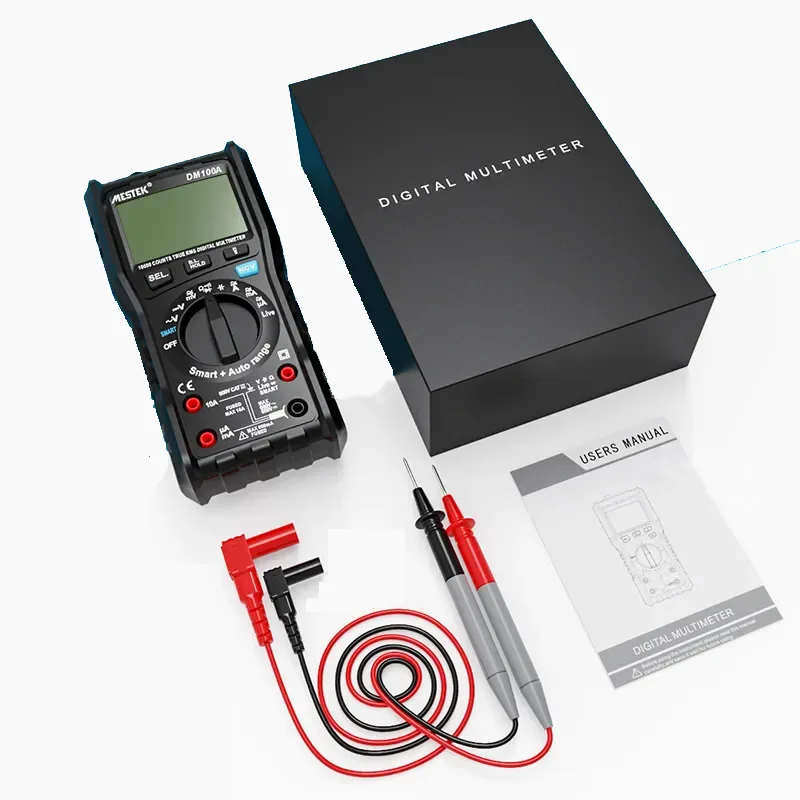

| Standard Accessories | Multimeter-Probe-K Type Thermocouple(optional) | |
| Batteries-User Manual-Color Box |
