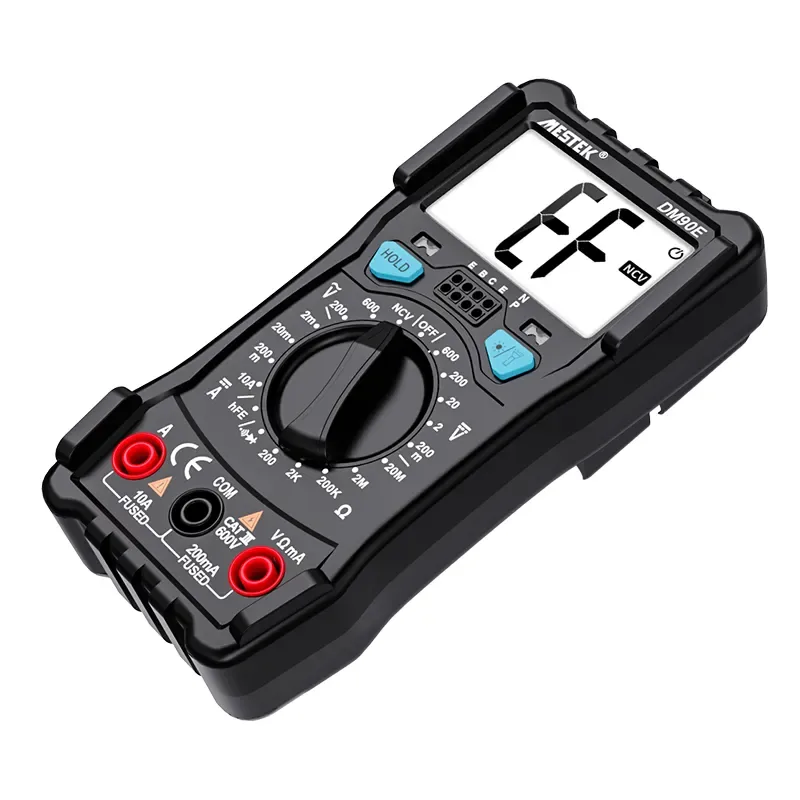

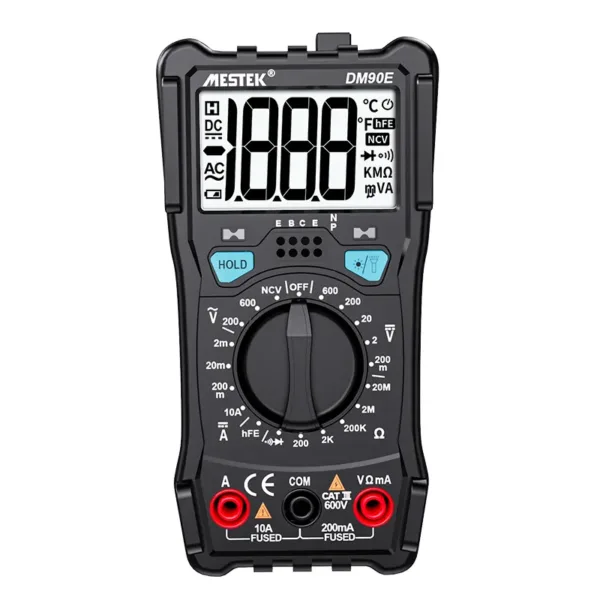

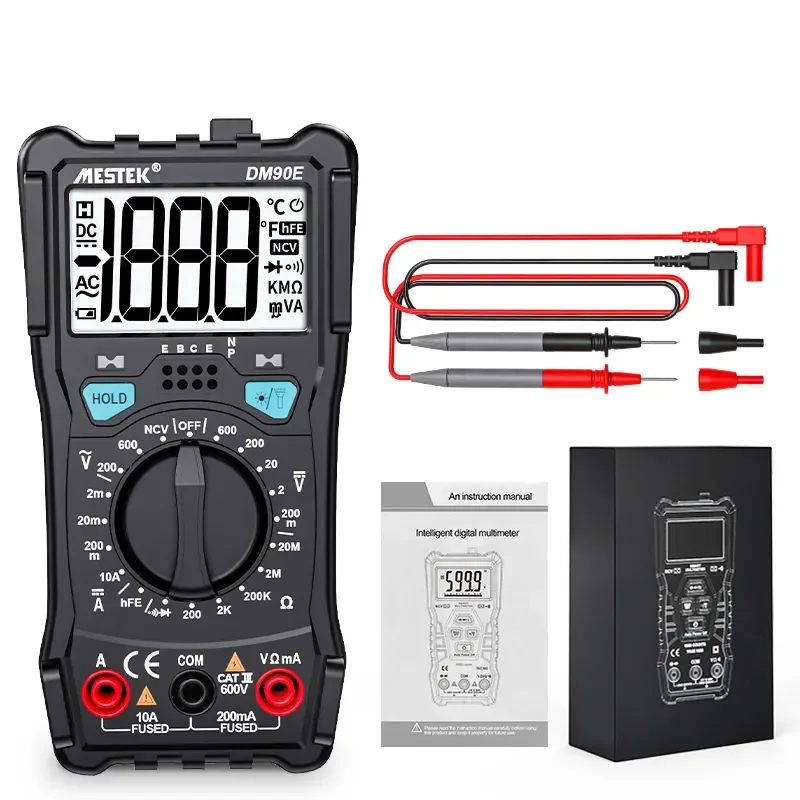

DM90E professional digital multimeter can measure voltages up to 600V by simply connecting the input terminals. It meets the requirements of professionals for manually adjusted resistance measurements. It is designed to comply with the EN61010-2-033 safety standard and has CAT Ⅲ 600V insulation protection. The multimeter DM90E is equipped with a white light flashlight, a non-contact AC voltage detection probe, and data logging functions.
Functions
DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+3) |
AC Voltage | 200V/600V | ±(1.2%+10) |
DC Current | 2mA/20mA/200mA/10A | ±(1.0%+5) |
Resistance | 200Ω/2KΩ/200KΩ/2MΩ/20MΩ | ±(1.0%+3) |
Display | 2000 counts | |
Continuity Buzzer | <30Ω | |
Diode | √ | |
Data Hold | √ | |
Backlight | √ | |
Flashlight | √ | |
Auto Power off | √ | |
Non-contact ACVoltage Detection | √ | |
Manual/Auto/Smart | Manual | |
Batteries | 3*1.5V AAA | |
Size | 147*71*45 (mm) | |
Weight | About 220g | |
Safety Level | EN61010-2-033,CAT Ⅲ 600V |
Factory Showcase
Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
