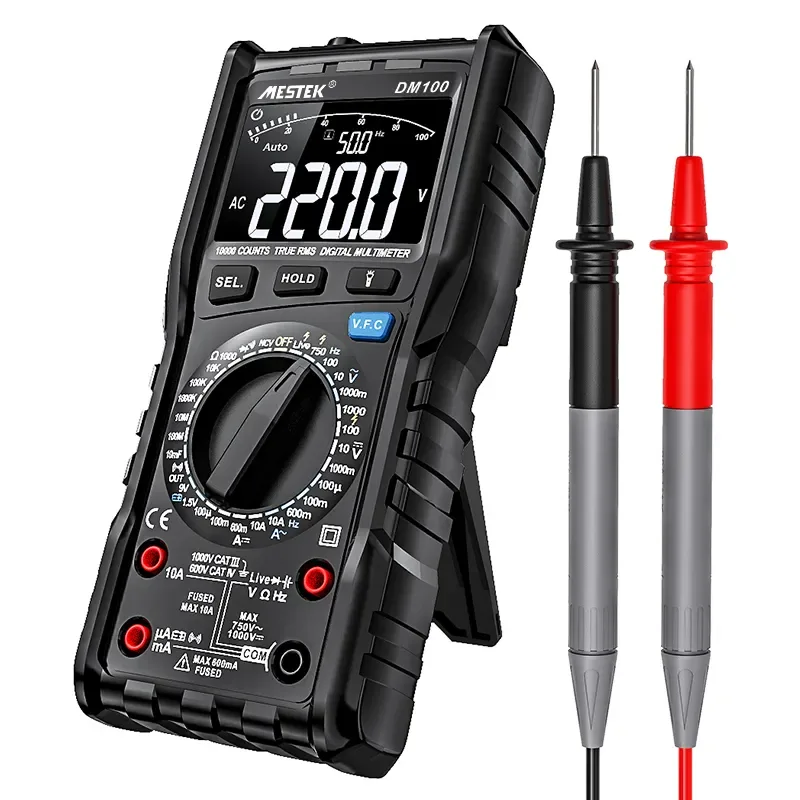

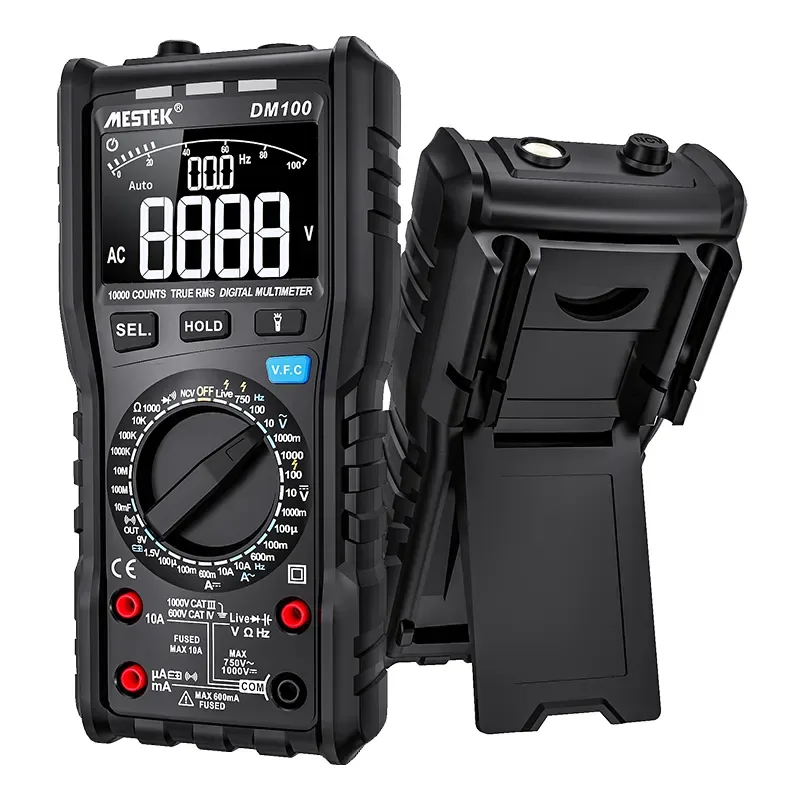

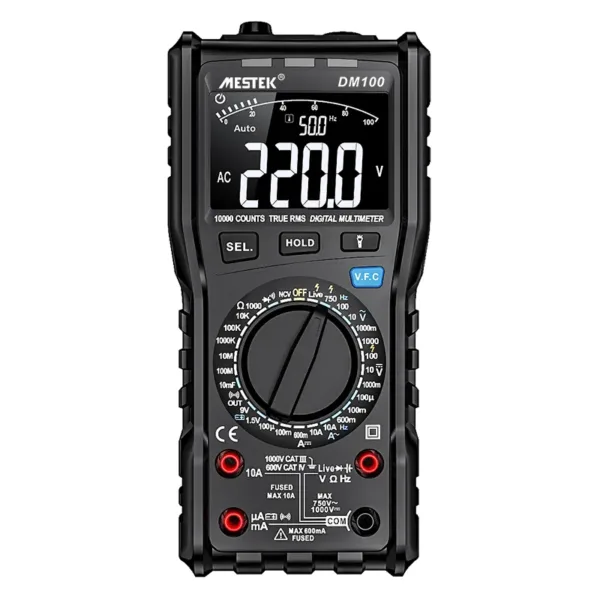

DM100
Multimeter with blown fuse warning function
The DM100 digital multimeter has 10,000 counts and supports non-contact AC voltage detection. It has a True-RMS function for accurate AC voltage measurement. It has automatic diode and continuity checks and is capable of DC voltage detection up to 1000V. The built-in blown fuse warning function improves safety and is suitable for a variety of electrical detection needs.
Functions
| DC Voltage | 1V/10V/100V/1000V | ±(0.5%+3) |
| AC Voltage | 1V/10V/100V/750V | ±(1.0%+5) |
| DC Current | 99.99uA/99.99mA/600mA/10 | ±(0.8%+3) |
| AC Current | 99.99mA/600mA/10A | ±(1%+3) |
| Capacitance | 100nF/1μF/10μF/100μF/1mF/10mF | ±(3.5%+15) |
| Resistance | 1000Ω/10kΩ/100kΩ/1000kΩ/10MΩ/100MΩ | ±(0.8%+3) |
| Display | 10000 Counts | ±(1%+3) |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1kHz | |
| Hz | 10MHz | |
| Ω | 100MΩ | |
| Continuity | Sound And LED Alarm | |
| Diode Test | √ | |
| Batteries | 2*1.5V AA | |
| Size | 190*89*50(mm) | |
| Weight | About 500g | |
| Safety Level | IEC61010-1:2020 CAT Ⅲ 1000V | |
| Standard Accessories | Multimeter-Probe-K Type Thermocouple(optional) | |
| Batteries-User Manual-Color Box |
Factory Showcase
Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
