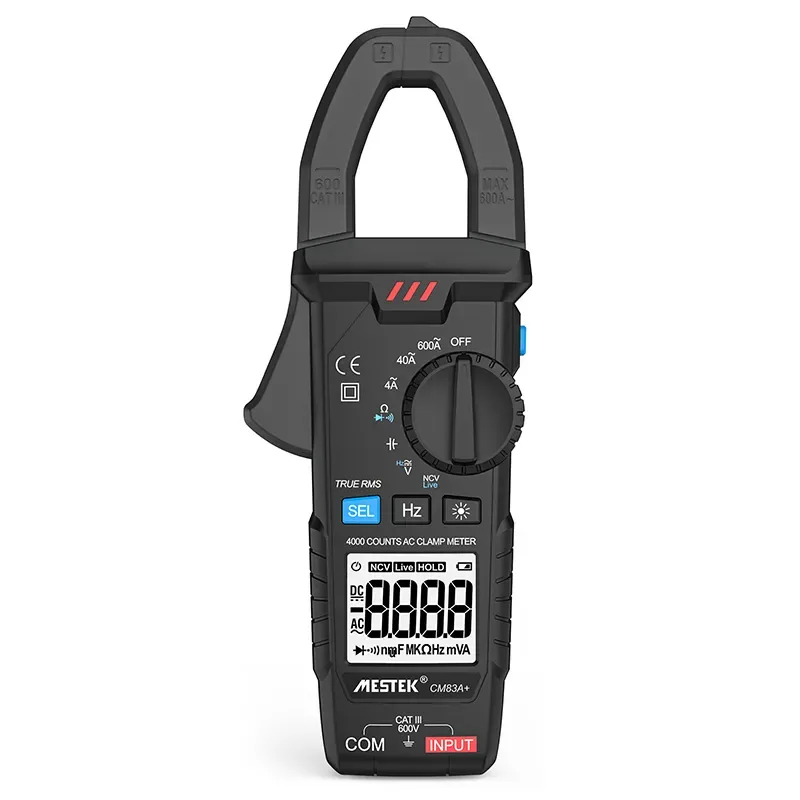

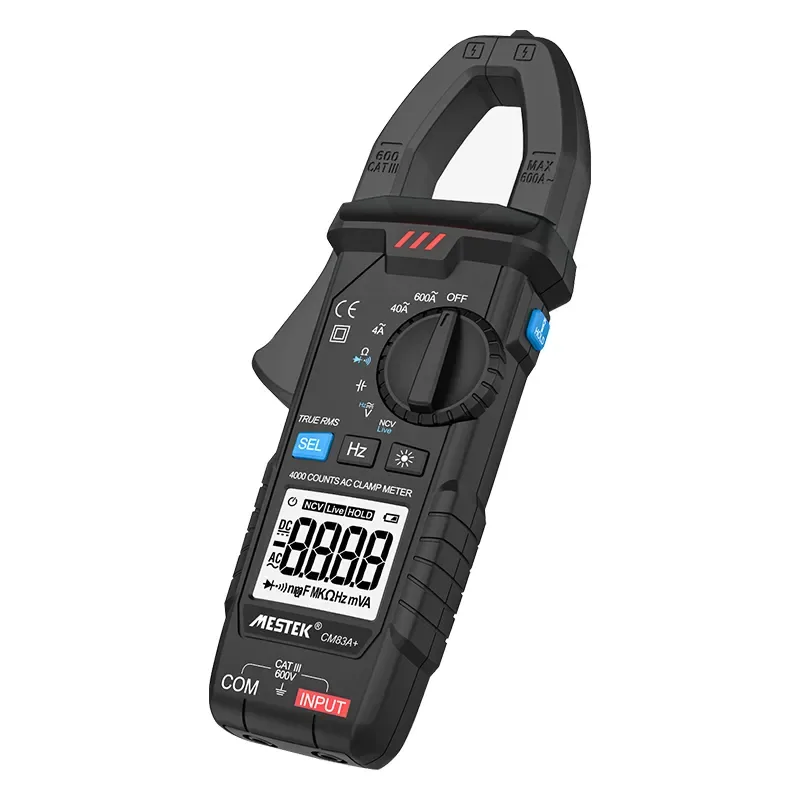

CM83A+
600A digital clamp meter – 6000 counts
The range of the digital clamp meter CM83A+ is 6000 counts, and its maximum DC current measurement is 600A. A flash device is designed on the clamp head to meet the measurement requirements in dark areas. The non-contact design can ensure your safety more safely.
Functions
| DC Voltage | 400mV/4V/40V/400V/600V | ±(0.8%+3) |
| AC Voltage | 400mV/4V/40V/600V | ±(1.0%+4) |
| AC Current | 4A/40A/600A±(2.5%+5) | ±(3.0%+6) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+3) |
| Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF | ±(3.5%+5) |
| Continuity Buzzer | <30Ω | |
| Jaw Opening | 32mm | |
| <30Ω | √ | |
| 中32mm | √ | |
| Diode | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| Flashlight | √ | |
| Auto Power off | √ | |
| NCV | √ | |
| Low Battery Indication | Lower than 2.4V | |
| Batteries | 2*1.5V AAA | |
| Size | 200*75*30(mm) | |
| Weight | About 226g | |
| Safety Level | EN61010-2-032,CAT Ⅲ 600V | |

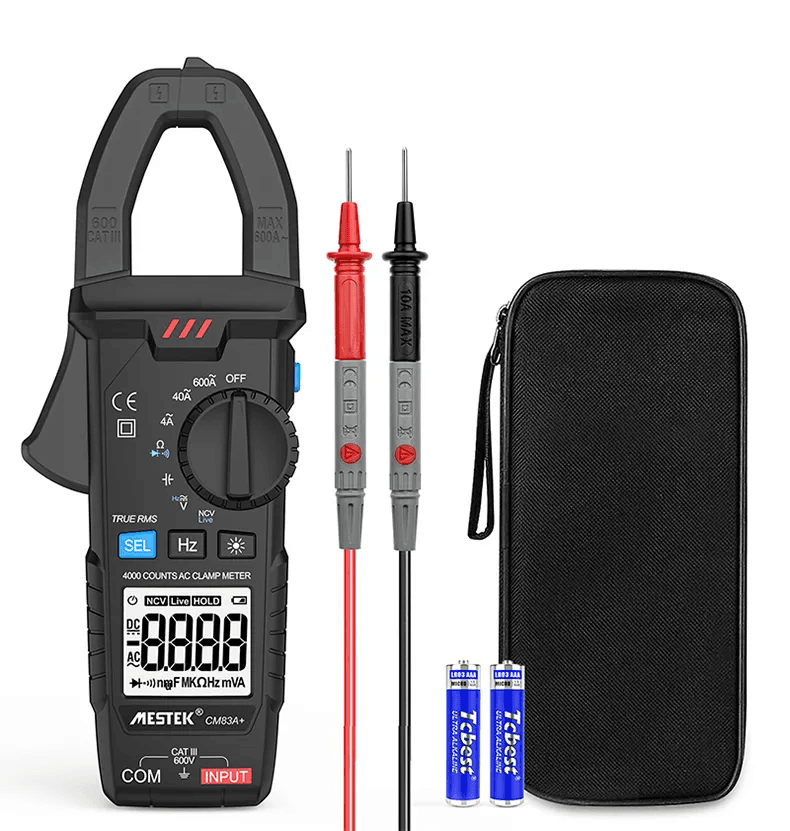

| Standard Accessories | Digital Clamp Meter-Probe-Carrying | |
| Bag-Batteries-User Manual-Color Box |
Factory Showcase
Mestek achieves high standards and high consistency in product inspection and calibration through precise machinery and a clean environment.
