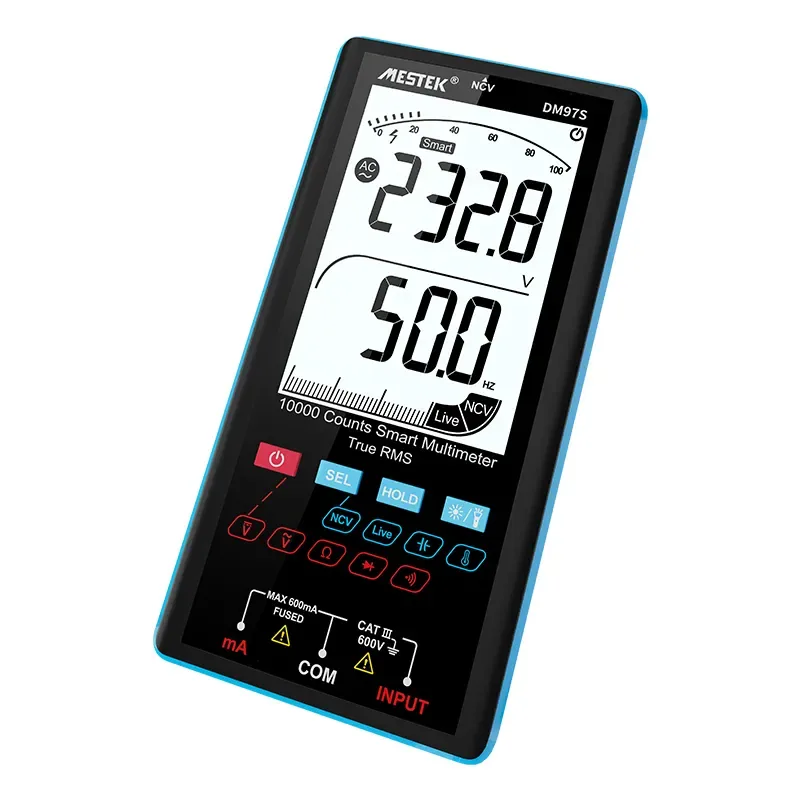

DM97S
Digital Multimeter with ACV/ACA True RMS and Type K Thermocouple
DM97S is a smart digital multimeter with 10,000 counts and smart range. It supports K-type thermocouple temperature measurement and can easily switch temperature units. DM97S also has a fast diode test function. It complies with the IEC61010-1 safety standard to ensure safety during use. DM97S supports continuity measurement and has sound and light alarm functions. It provides accurate measurement results to help professional electricians improve work efficiency.
Functions
| DC Voltage | 1V/10V/100V/600V | ±(0.8%+3) |
| AC Voltage | 1V/10V/100V1600V | ±(0.8%+10) |
| DC Current | 100mA/600mA | ±(3.0%+10) |
| AC Current | 100mA/600mA | ±(3.0%+10) |
| Resistance | 10kΩ/100kΩ/10MΩ | ±(1.0%+5) |
| Capacitance | 1μF/10μF/100μF/1000μF/6000μF | ±(4.0%+10) |
| °C/°F | 20°C~1000°C/-4°F-1832°F | ±(2.0%+2) |
| Manual/Auto/Smart | Smart | |
| Display | 10000 Counts | |
| ACV/ACA T-RMS | √ | |
| °C/°F | √ | |
| Continuity | Sound And LED Alarm | |
| Diode Test | √ | |
| Batteries | 2*1.5V AA | |
| Size | 190*89*50(mm) | |
| Weight | About 500g | |
| Safety Level | IEC61010-1:2020 CAT Ⅲ 1000V | |

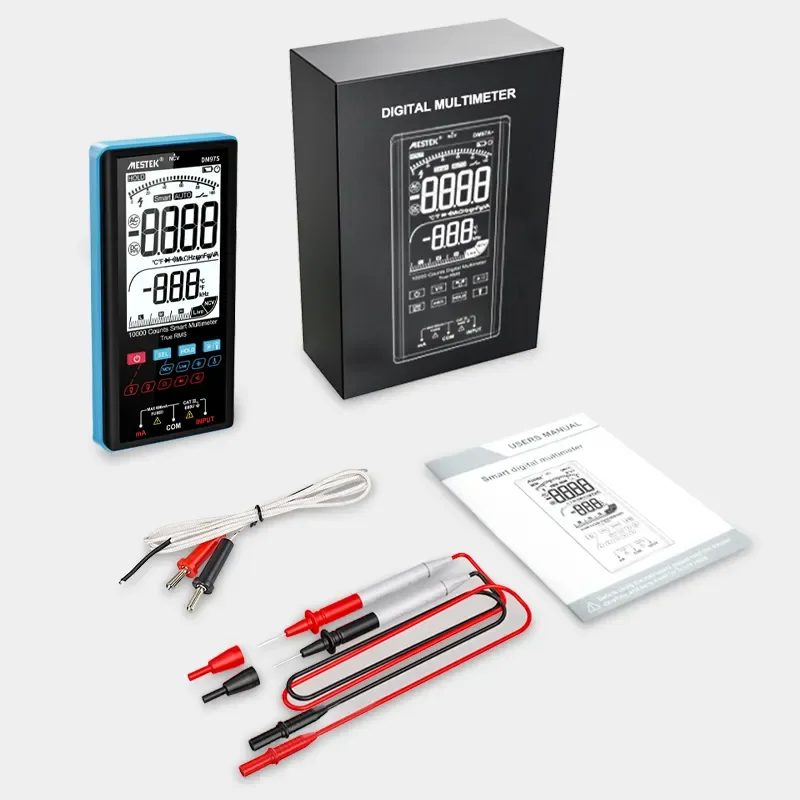

| Standard Accessories | Multimeter-Probe-K Type Thermocouple-Batteries-User Manual-Color Box | |
