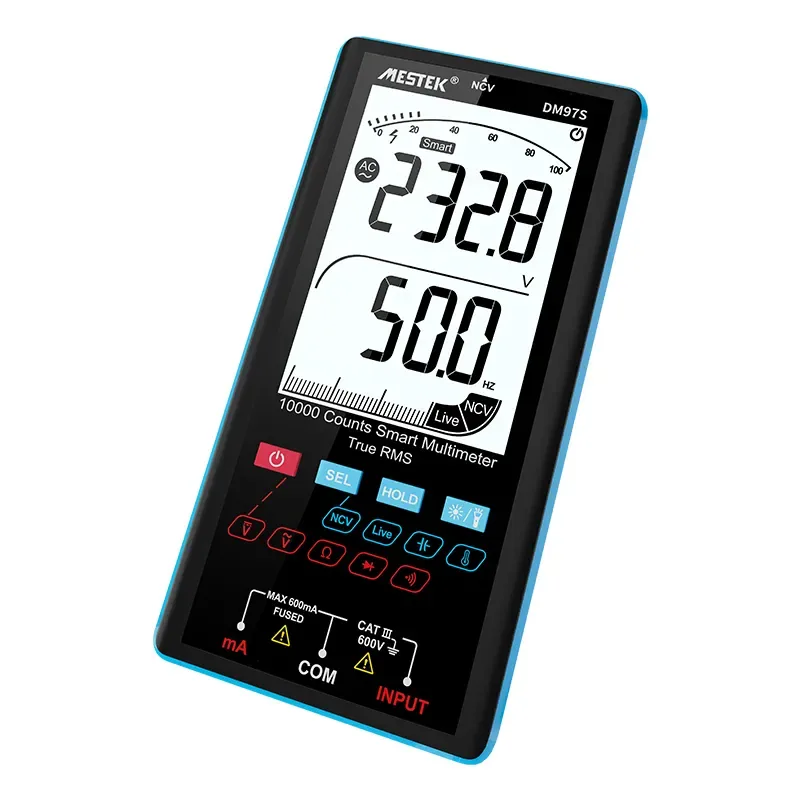

DM97S is a smart digital multimeter with 10,000 counts and smart range. It supports K-type thermocouple temperature measurement and can easily switch temperature units. DM97S also has a fast diode test function. It complies with the IEC61010-1 safety standard to ensure safety during use. DM97S supports continuity measurement and has sound and light alarm functions. It provides accurate measurement results to help professional electricians improve work efficiency.
| DC Voltage | 1V/10V/100V/600V | ±(0.8%+3) |
| AC Voltage | 1V/10V/100V1600V | ±(0.8%+10) |
| DC Current | 100mA/600mA | ±(3.0%+10) |
| AC Current | 100mA/600mA | ±(3.0%+10) |
| Resistance | 10kΩ/100kΩ/10MΩ | ±(1.0%+5) |
| Capacitance | 1μF/10μF/100μF/1000μF/6000μF | ±(4.0%+10) |
| °C/°F | 20°C~1000°C/-4°F-1832°F | ±(2.0%+2) |
| Manual/Auto/Smart | Smart | |
| Display | 10000 Counts | |
| ACV/ACA T-RMS | √ | |
| °C/°F | √ | |
| Continuity | Sound And LED Alarm | |
| Diode Test | √ | |
| Batteries | 2*1.5V AA | |
| Size | 190*89*50(mm) | |
| Weight | About 500g | |
| Safety Level | IEC61010-1:2020 CAT Ⅲ 1000V | |

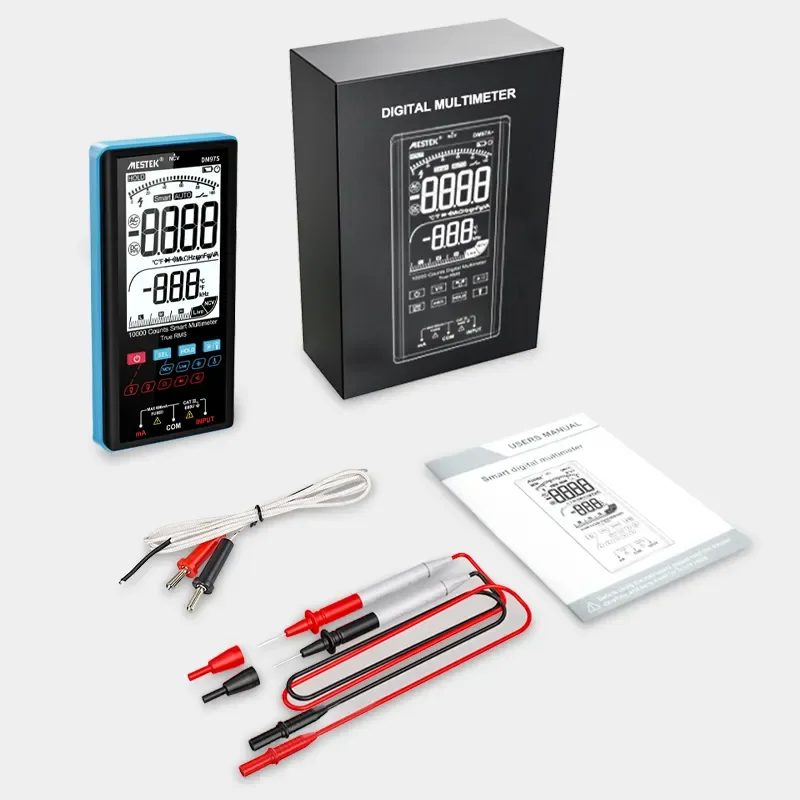

| Standard Accessories | Multimeter-Probe-K Type Thermocouple-Batteries-User Manual-Color Box |
