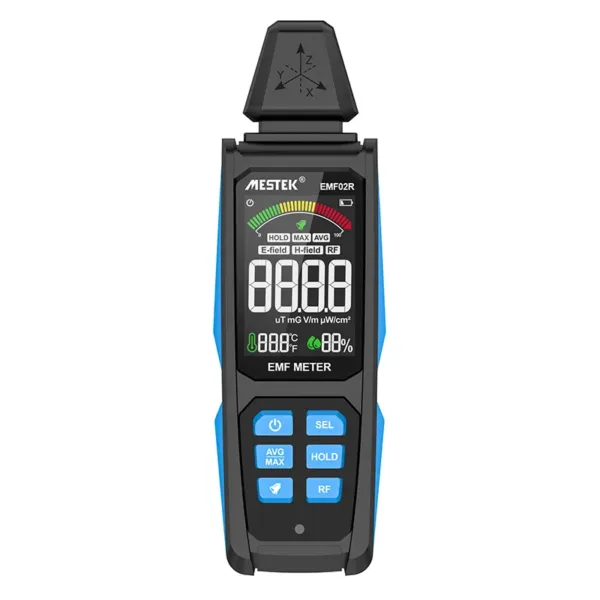

Electromagnetic Radiation Detector EMF02R
Electric field, electromagnetic, temperature detection

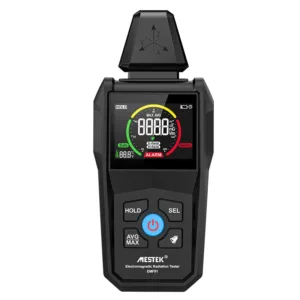

Electromagnetic Radiation Detector EMF01. High-performance electromagnetic radiation detection equipment designed for industrial, laboratory and commercial environments. EMF01 supports broadband testing from 30MHz to 8GHz. It is equipped with a single-axis sensor head to ensure detection accuracy. With a high sampling rate of 0.3 seconds, it responds to changes in environmental electromagnetic radiation in real time. Built-in alarm function, when the magnetic field strength exceeds 4.0mG or 0.4μT, or the electric field strength exceeds 40V/M.
Functions
| Range | 0.1-199.9mG/0.01-19.99μT |
| Alarm threshold | > 4.0mG/> 0.4μT |
| Electric Field Measurement | Electric Field Measurement |
| Range: | 1-1999V/M |
| Resolution: | 1V/M |
| Alarm threshold> 40 V/M | Alarm threshold> 40 V/M |
| Ambient Temperature | 0~50℃/32~122°F Resolution:1°C/°F |
| Sampling time | About 0.3 seconds |
| Operating humidity | Relative humidity below 80% |
| Test bandwidth | 30MHz~8GHz |
| Alarm threshold | 40uW/cm² |

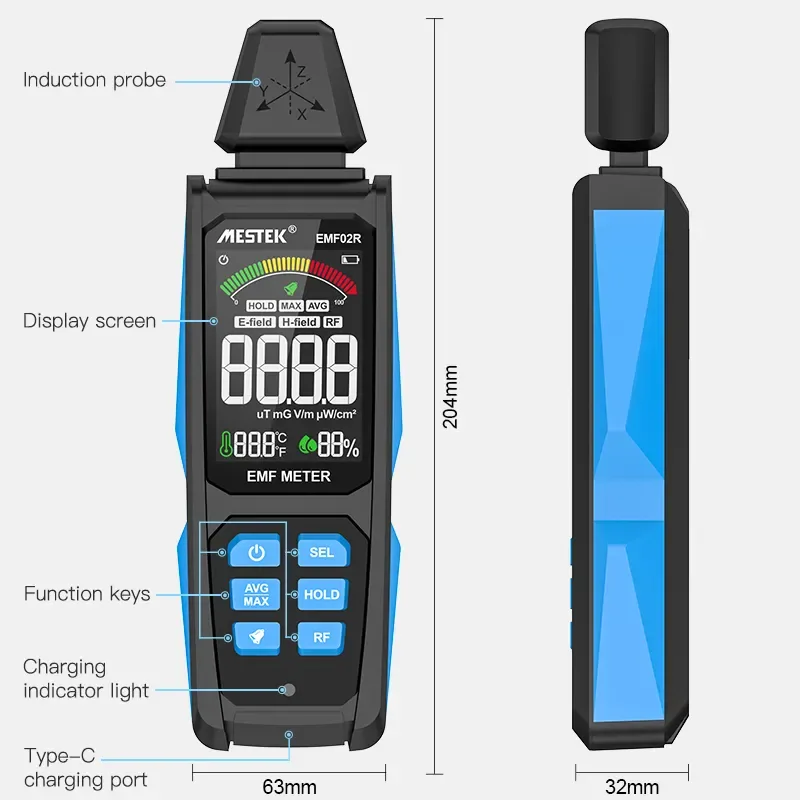

| Sensing head | Single axis (top of instrument) |
| Charging interface | USB Type-C |
| USB charging | 5V/1A |
| Power Supply | 1000mA/3.7v/lithium battery |
